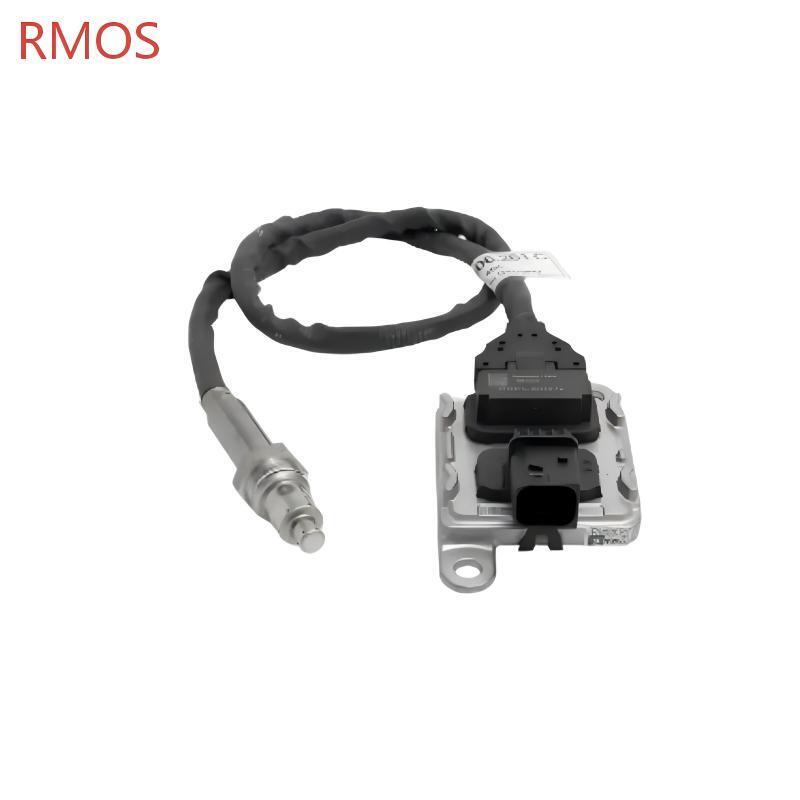

12V ZrO2 Nitrogen Oxide Auto Nox Sensor 2872942 2872942NX 5WK96749

The 5WK96749 (also referenced as 5WK96749B or 5WK9 6749) is a planar dual-cell limiting current type nitrogen oxide (NOx) sensor designed for 12V medium-duty and heavy-duty diesel engine exhaust aftertreatment systems equipped with Selective Catalytic Reduction (SCR). It is an electrochemical sensor that continuously monitors the concentration of nitrogen oxides (NOx) and oxygen (O₂) in the exhaust stream and communicates with the Engine Control Unit via digital CAN bus protocol (typically SAE J1939). This real-time feedback enables precise control of the SCR system and ensures compliance with EPA 2010, Euro V, and equivalent emission standards. The sensor works by measuring the level of oxygen in the exhaust gas before and after the ceramic element; the difference between the two measurements is used to calculate the level of NOx present.

The 5WK96749 is a GEN 2.0 NOx Sensor, offering significantly improved accuracy over other aftermarket sensors, faster reaction time, ability to be reflashed with updated software, and enhanced waterproofing and dust/debris accumulation resistance. The sensor transmits NOx values in real time to the ECU after normal operation; the ECU monitors whether the NOx value in the exhaust gas exceeds the standard through a set of NOx monitoring programs.

Important: The 5WK96749 operates on a 12V system voltage. Always verify your vehicle's electrical system voltage before purchase. Do not install on 24V systems — this will cause immediate and permanent damage to the sensor electronics.

The following part numbers are directly interchangeable with 5WK96749 and its suffix variant 5WK96749B. When searching for a replacement, these numbers may appear on the original sensor label, in supplier catalogs, or in vehicle manufacturer documentation. Always verify physical connector type, voltage rating, thread size, and cable length before purchasing.

From multiple supplier sources, the following cross-references have been verified:

• The 5WK96749B sensor cross-references to OEM numbers 2872942, 2872942NX, 4326872, 4326872RX, 2520640C1, 1924000, 1954664PE, and 1954664PRX.

• The sensor is also cross-referenced with 904-6015 for heavy-duty truck applications.

• A-Premium lists 5WK96749, 2872942, 904-6015, 2872942NX, 4326872, and 4326872RX as direct interchange part numbers.

All cross-reference numbers are for identification purposes only. The underlying Continental reference number (5WK96749 or 5WK96749B) is the most reliable way to ensure correct functionality. Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

⚠️ Important: The 5WK96749B is a GEN 2.0 sensor, offering improved accuracy over earlier sensors, faster reaction time, ability to be reflashed, and better waterproofing and dust/debris accumulation resistance. When replacing, confirm whether your vehicle's ECU is compatible with GEN 2.0 sensor communication protocols.

The 5WK96749 NOx sensor is designed for 12V commercial vehicle electrical systems and is primarily used with Cummins diesel engines in heavy-duty truck and commercial vehicle applications. Application coverage spans EPA 2010 / Euro V compliant vehicles, with primary usage in model years approximately 2013–2020.

This sensor is most closely associated with Cummins diesel engines in heavy-duty truck applications. It is specifically designed for use with Cummins engines fitted with SCR aftertreatment systems meeting EPA 2010 emission standards. The sensor is tailored specifically for Continental 12V systems, ensuring optimal performance in Cummins engines.

Based on cross-reference information and supplier listings, the 5WK96749 is compatible with the following engine platforms:

The 5WK96749 NOx sensor is widely used in heavy-duty trucks powered by Cummins diesel engines. Verified vehicle compatibility includes:

Source: Verified from multiple compatibility listings including A-Premium and Dorman HD Solutions.

The 5WK96749 is specifically identified as an Outlet NOx Sensor (System Outlet / Tail Pipe / Downstream position) in most applications. Multiple sources confirm this sensor is designed for the outlet position. The outlet sensor is installed after the SCR catalyst (typically in the tail pipe) and is used to confirm that treated exhaust complies with emissions regulations.

• Installation Position: Tail Pipe

• Terminal Quantity: 4

• Terminal Type: Blade

When replacing this sensor, verify the position of your failed sensor:

• Upstream (inlet / pre-SCR) — mounted before the DPF or SCR catalyst

• Downstream (outlet / post-SCR / Tail Pipe) — mounted after the SCR catalyst (this sensor)

The 5WK96749 is designed for vehicles meeting:

• EPA 2010 (EPA10) — North American heavy-duty emissions standards (primary application)

• Euro V — European emissions standards

• Equivalent Tier standards for on-road and off-highway equipment

The sensor meets EPA and EU emissions standards, ensuring legal operation across regulated markets.

Due to the diversity of commercial vehicle configurations, physical fitment alone does not guarantee proper function. To confirm compatibility:

1. Check your original sensor label — Match the full part number 5WK96749 or 5WK96749B

2. Verify voltage — The 5WK96749 is a 12V sensor; confirm your vehicle electrical system is 12V

3. Count connector pins — 4-pin sealed connector (female square) with (4) male blade terminals

4. Confirm thread size — M20 x 1.5

5. Check engine platform — Confirm compatibility with Cummins ISX (11.9L / 15L) or ISB engines

6. Verify placement position — Outlet / Downstream (Tail Pipe) position

7. Confirm model year — Primarily 2013–2020 vehicles

8. Check the original OE number — OEM part numbers are located on the back of the old unit. If in doubt about compatibility, refer to your original sensor's part number before purchasing.

⚠️ Important note: Compatibility extends beyond physical fitment. The sensor must match the ECU's CAN communication protocol. Always reference your original sensor's part number or consult vehicle-specific documentation before purchasing.

A degraded or failed 5WK96749 NOx sensor will typically trigger one or more of the following symptoms. Early recognition can prevent secondary damage to the SCR catalyst, DEF injector, Diesel Exhaust Fluid system, or Diesel Particulate Filter.

The most common first indicator is the illumination of the check engine light on your dashboard. The ECU detects abnormal, missing, or out-of-range NOx data and triggers a fault code. A faulty NOx sensor often illuminates the vehicle's check engine light.

If you have performed an on-board computer scan and your vehicle is showing any of the following error codes, it typically means the NOx sensor has failed.

The rationality check for this sensor consists of sensor stuck low and stuck high checks performed whenever the engine operates under highly transient conditions. A fault condition is reached whenever the NOx sensor values are below or above a fault limit.

When NOx readings become inconsistent or implausible, the ECU reacts to protect emissions systems by limiting torque and engine speed. Vehicle owners may experience reduced engine power, sluggish acceleration, and overall poor vehicle performance. Failed sensors can trigger limp mode, DEF warnings, power restriction countdowns, or prevent restart.

A malfunctioning NOx sensor sends inaccurate data to the ECU, which in turn adjusts the air-fuel mixture incorrectly. This imbalance often causes the engine to inject more fuel than necessary, leading to increased fuel consumption and higher operating costs.

A faulty NOx sensor disrupts the ECU and SCR, triggering fault codes and leading to incorrect DEF dosing. False high NOx readings cause the SCR to over-dose DEF, resulting in rapid DEF depletion and potential crystallized injector. This is one of the most costly indirect symptoms of a failing NOx sensor.

Since the NOx sensor directly impacts your vehicle's emissions, a failure can cause your vehicle to exceed acceptable limits, resulting in a failed test. Failing to maintain a healthy NOx sensor can result in non-compliance, potentially leading to fines and penalties.

The GEN 2.0 NOx sensor performs its own internal diagnostics and reports malfunctions back to the primary ECM using communication lines. When the NOx sensor is unable to maintain a reliable output, its signal quality will be set to "not reliable." This OBD monitor is designed to detect bad sensor quality.

It is always recommended to fix NOx sensor issues as soon as possible to avoid any damages to the DPF filter. Otherwise, diesel particulate matter or soot can clog the filter, potentially costing thousands to repair.

Before replacing the 5WK96749, perform these basic checks:

1. Visual inspection — Look for damaged cable insulation, chafing against chassis components, bent pins, or a melted/cracked connector

2. Check DTC status — Using a diagnostic scan tool (OBD-II / SAE J1939 compatible), verify which codes are present and whether they are active or intermittent

3. Heater resistance test — Measure between heater positive and heater ground pins using a multimeter. An open circuit or short indicates internal failure

4. Voltage supply — With key on and engine off, verify 12V power at the sensor connector (do NOT apply 24V)

5. Live data review — Observe NOx readings; a fixed reading of 0 ppm or pegged at maximum without change points strongly suggests a faulty sensor

Note: A recurring NOx sensor code may also be caused by an exhaust leak upstream of the sensor, poor DEF quality, a failed DEF injector, or a contaminated SCR catalyst. Perform a thorough system diagnosis before sensor replacement to avoid repeat failures.

Purchasing the correct 5WK96749 NOx sensor and installing it properly is essential for reliable SCR performance and avoiding costly mistakes. Commercial vehicle operators should pay special attention to voltage compatibility, correct identification of part numbers, GEN 2.0 technology, placement position, and installation procedures.

• Match the full printed number on your original sensor — 5WK96749 or 5WK96749B

• Check OEM cross-references — Verify compatibility with numbers such as 2872942, 2872942NX, 4326872, 4326872RX, 2520640C1, 1924000, 904-6015, 1954664PE, and 1954664PRX

• Confirm GEN 2.0 compatibility — The 5WK96749B is a GEN 2.0 sensor; GEN 2.0 sensors offer improved accuracy, faster reaction time, ability to be reflashed, and better waterproofing and dust/debris accumulation resistance. However, ensure your vehicle's ECU supports GEN 2.0 sensor communication protocols

• Avoid "universal fit" listings — This is a specific digital device; generic sensors claiming to fit "all diesels" are unlikely to communicate correctly with your ECU

• Check OE numbers carefully — OEM part numbers are located on the back of the old unit. All cross-reference numbers are for identification purposes only; the underlying Continental reference number is the most reliable way to ensure correct functionality. Any mention of OEM names or OEM product ID numbers is intended for identification purposes only and does not indicate that it is an OEM part

• If in doubt about compatibility, refer to your original sensor's part number or consult a specialist before purchasing

• Reputable supplier — Choose a supplier with documented quality control and a minimum 12-month warranty. Many premium suppliers offer 1-year, unlimited mileage coverage

• Avoid used or "remanufactured" — NOx sensors degrade internally from heat and contamination. Used sensors almost always fail prematurely. Look for 100% new products

• Price guideline — Authentic quality replacements typically range from approximately $66 to $373:

  • Economy/aftermarket: $66–$95

  • Premium aftermarket: $127–$195

  • GEN 2.0 Next Generation with re-flashing technology: $373

  • Suspiciously low prices (below $50) may indicate counterfeit or defective products

• Packaging — New sensors should be shipped in protective packaging with a protective cap over the ceramic tip. One product per box, individual packaging

• Third-party testing — Look for sensors that have been tested and accredited by 3rd party testing

• Future-proof capability — Some replacement sensors feature future-proof software re-flashing technology to ensure compatibility with upcoming OE software updates

• Certification Standards — Premium sensors comply to OEM specifications, guaranteeing quality and compatibility, and meeting rigorous industry standards for safety and performance

• Warranty offerings — Dinex Emissions offers a one-year warranty and states exceptional quality, not a cheap knock-off

• Do not touch the ceramic sensing tip — Skin oils cause thermal shock cracking during the first heat-up cycle

• Inspect cable routing — Ensure the new cable follows the original path, using existing clips and standoffs. Avoid sharp bends or contact with moving parts

• Remove protective cap only when ready — Keep the sensor clean by removing the protective cap immediately before installation. Do not allow any dirt to contaminate the threads

• Clean the bung threads — Use a thread chaser (M20 x 1.5) to remove carbon buildup and rust before installation

• Inspect electrical connections — Check the vehicle-side connector for cleanliness, corrosion, and sealing integrity before installing the new sensor

• Verify plug-and-play compatibility — Quality aftermarket sensors feature OE-style connectors for streamlined service and reduced downtime

The 5WK96749 is designed for easy integration and plug-and-play installation. Follow this sequence for proper installation:

1. Prepare the mounting location — Allow the exhaust system to cool before removal. Wear heat-resistant gloves and eye protection

2. Disconnect the vehicle's battery — To prevent electrical hazards

3. Remove the old sensor — Carefully remove the faulty sensor from the exhaust bung (tail pipe location)

4. Inspect the vehicle connector — Ensure the mating connector is dry, clean, and free from corrosion

5. Remove protective cap — Immediately before installation, remove the protective cover from the sensor probe

6. Install the probe — Insert the sensor probe into the exhaust bung (tail pipe). Hand-tighten while holding the sensor body to prevent cable twisting

7. Torque properly — Critical: Follow OEM torque specifications. Typical torque for M20 x 1.5 threads: 40–55 Nm. Torque specifications are critical as over-tightening cracks exhaust bungs while under-tightening causes leaks

8. Connect the harness — Connect the mating 4-pin female square connector to the sensor (male blade terminals). Ensure the connector interior is clean and dry. Plug-and-play OE-style connectors minimize installation time

9. Secure the cable — Use original routing clips and standoffs to secure the harness away from heat sources and moving parts

A new NOx sensor will NOT function correctly until the ECU learns its baseline values and performs a plausibility check. Many returns are caused by skipped adaptation, not a defective part.

Why adaptation is necessary: Engine Control Units continuously learn and adapt to sensor degradation over time. Installing a fresh component without resetting these learned values leaves your ECU operating on outdated, skewed data.

What DOES NOT work: Attempting to clear deep-level adaptation memory by disconnecting the battery is ineffective on modern emissions systems and often triggers secondary Battery Management System faults.

What DOES work:

1. Install the sensor following the sequence above

2. Connect a professional diagnostic scan tool capable of commercial vehicle diagnostics (SAE J1939 / OBD-II compatible)

3. Clear all existing DTCs — Use the diagnostic tool to clear all existing fault codes

4. Perform "NOx sensor reset / adaptation / teach-in" — This function is typically found under "Special functions," "SCR system," or "Aftertreatment service" in diagnostic software

5. Reset SCR learned values (if available) — This clears previously stored efficiency values from the old sensor

6. If using a GEN 2.0 sensor — Some GEN 2.0 sensors feature software re-flashing capability for future compatibility with OE software updates. This ensures seamless operation even after ECU software updates

7. Drive cycle — Complete a 15–20 minute mixed driving cycle at operating temperature with varying engine loads

8. Verify readiness — After the drive cycle, check for any returning DTCs. Monitor live NOx data; it should fluctuate logically (higher readings under heavy load, lower readings at idle)

⚠️ Without proper adaptation, you may still see DTCs (e.g., P2200, P229E) even with a brand new sensor. Many returns are caused by skipped adaptation, not a defective part.

• 12V system confirmation: Unlike many other 5WK96xxx series NOx sensors that operate on 24V, the 5WK96749 is a 12V sensor. Verify your vehicle's electrical system voltage before purchase. Installing a 12V sensor on a 24V system will cause immediate heater or electronics damage

• Tail pipe / Outlet position verification: The 5WK96749 is specifically identified as an Outlet / Tail Pipe sensor. Verify which position (upstream vs. downstream) requires replacement on your specific vehicle

• Wiring harness condition: Commercial vehicles operate in harsh environments (vibration, heat, moisture, road salt). Inspect the full harness length for chafing, corrosion at connectors, and damaged insulation before condemning the sensor

• SCR system health: A recurring NOx sensor code may indicate a failed SCR catalyst, DEF quality issues, or a clogged DEF injector. These should be diagnosed before replacing the sensor a second time

• Multiple sensor positions: Some platforms use two NOx sensors (upstream and downstream). The 5WK96749 is for outlet position

• ECU software updates: GEN 2.0 sensors are designed with improved protection against OE software updates. Dinex Emissions is the only aftermarket supplier who has solved the compatibility issues with OE software updates; smart technology ensures seamless operation even in the future

• Root cause matters: Contamination from oil consumption, fuel quality issues, or DEF system malfunctions often destroys replacement sensors — diagnose before replacing to avoid repeat failures

• 8-wire variant: For ISB engine applications, the sensor may be supplied with 8 wires

The 5WK96749B is a GEN 2.0 NOx Sensor offering significant advantages over earlier generation sensors:

• Improved accuracy over other aftermarket sensors

• Faster reaction time enabling more responsive SCR control

• Ability to be reflashed with updated software for compatibility with recent and upcoming ECU software updates

• Better waterproofing and dust/debris accumulation resistance

• Better quality and durability for long-lasting performance

• Compatible with recent and upcoming ECU software updates

• Improved protection against OE software updates

• Lab and field tested to ensure accuracy and durability

• Smart technology ensures seamless operation even in the future

• In regions with mandatory emissions testing (EU, California, China, Australia, Brazil), a non-functioning NOx sensor will cause the MIL to illuminate, resulting in automatic inspection failure

• It is illegal to defeat, delete, or simulate the NOx sensor signal in any on-road vehicle. Always replace with a fully functional sensor

• Commercial fleets subject to emissions auditing must maintain properly functioning SCR systems, including accurate NOx sensing

• The sensor is designed to optimize emissions and fuel economy to meet national and regional emission standards

• The sensor meets EPA and EU emissions standards, ensuring legal operation across regulated markets

• Before purchasing, confirm the supplier offers a return or exchange for compatibility errors, preferably within 30 days of receipt

• Keep your original sensor until the new one is confirmed working – it serves as the ultimate reference for part number and fitment

• Request a data sheet or installation guide that includes pinout and adaptation steps if available

• Most reputable suppliers offer a 6–12 month warranty against manufacturing defects. Some offer one-year, unlimited mileage coverage

• Some suppliers offer one-for-one compensation in case of manufacturing defects

Based on compatibility data, the 5WK96749 sensor family is primarily used for vehicles from model years approximately 2013 through 2020. Verified compatibility includes:

• Cummins ISX 11.9 and 15.0 engines: 2013–2018

• Cummins X15 engines: 2020

• Cummins ISX 11.9G engines: 2017–2019

• Freightliner Cascadia: 2013–2020

• Freightliner 114SD: 2017–2019

Always verify your specific vehicle model year and engine platform before purchase. For newer vehicles, always reference your original sensor's part number as OEM specifications may have changed.

The NOx Sensor 5WK96749 (5WK96749B) is a GEN 2.0 critical emissions aftertreatment component for 12V heavy-duty diesel commercial vehicles. Unlike many other sensors in the 5WK96xxx series which operate on 24V, the 5WK96749 is specifically designed for 12V systems and is primarily used with Cummins diesel engines (ISX 11.9L / 15.0L / X15, ISB) in Freightliner, Kenworth, Peterbilt, International, Volvo, and Western Star trucks, meeting EPA 2010 emission standards.

Key cross-references: 2872942, 2872942NX, 4326872, 4326872RX, 2520640C1, 1924000, 1954664PE, 1954664PRX, 904-6015

Key technical specifications:

• Operating voltage: 12V DC (critical distinction — NOT 24V)

• Generation: GEN 2.0 — improved accuracy, faster reaction time, ability to be reflashed, better waterproofing and dust/debris accumulation resistance

• NOx measuring range: 0–2500 ppm

• O₂ measuring range: 0%–21%

• NOx detection accuracy: 0–100ppm: ±10ppm; 100–500ppm: ±10%; 500–1500ppm: ±15%; 1500–2500ppm: ±25%

• O₂ detection accuracy: 0%–1%: ±0.35%; 1%–5%: ±0.2%; 5%–21%: ±4%

• Response time: t10↔90% λlin < 3500 ms; t10↔90% NOx < 3500 ms

• Light-off time: < 100 seconds (from dew point to measurement state)

• Design life: 6,000 hours or 350,000 km

• Connector: Female square; Terminals: (4) Male Blade; Wire Gauge: 22 GA

• Thread: M20 x 1.5

• Cable length: 615 mm

• Dimensions: 31.29" x 2.56" x 1.63"

• Torque specification: 40–55 Nm

• Emission standard: EPA10, Euro V

• Certifications: TS16949, CE, CCC, ISO14001, IATF16949

Compatible engine platforms:

• Cummins ISX 11.9L (2013–2018)

• Cummins ISX 15.0L (2013–2018)

• Cummins X15 (2020)

• Cummins ISX 11.9G (2017–2019)

• Cummins ISB 6.7L

• International N13 (2015–2018)

Vehicle applications (representative):

• Freightliner: Cascadia (2013–2020), 114SD (2017–2019), Columbia, Coronado, XC Modular Rail, XC Raised Rail

• Kenworth: C500, T660, T680, T700, T800, T880, W900

• Peterbilt: 365, 367, 384, 386, 388, 389, 567

• International Harvester: 5900i, 7600, 8600 TranStar, 9900i, HX515, HX520, HX615, ProStar

• Volvo: VNL

• Western Star: 4900FA, 4900SA, 4900EX, 6900XD

Placement on vehicle: The 5WK96749 is identified as an Outlet / Tail Pipe / Downstream NOx Sensor, installed after the SCR catalyst to verify emissions compliance. Installation position is the tail pipe.

Installation requirements:

• Do NOT apply anti-seize to threads

• Do NOT touch ceramic sensing element

• Confirm 12V system voltage — DO NOT install on 24V vehicles

• Professional installation and mandatory ECU adaptation required after replacement

• Perform torque to 40–55 Nm

• Plug-and-play installation with OE-style connectors

• Use M20 x 1.5 thread chaser to clean bung threads

GEN 2.0 Technology Advantages (5WK96749B):

• Improved accuracy over other aftermarket sensors

• Faster reaction time for responsive SCR control

• Ability to be reflashed with updated software

• Better waterproofing and dust/debris accumulation resistance

• Compatible with recent and upcoming ECU software updates

• Improved protection against OE software updates

• Lab and field tested for accuracy and durability

CRITICAL NOTE – VOLTAGE COMPATIBILITY: The 5WK96749 operates on 12V DC. This distinguishes it from many other NOx sensors in the 5WK96xxx series that are designed for 24V commercial vehicle applications. Always verify your vehicle's electrical system voltage (12V or 24V) before purchase. Installing this 12V sensor on a 24V system will cause immediate heater or electronics damage.

CRITICAL NOTE – ECU ADAPTATION IS MANDATORY: A physical NOx sensor replacement must be paired with an ECU adaptation or reset to clear permanent fault codes and restore SCR efficiency. Disconnecting the battery will NOT work. Without proper adaptation, you will still see DTCs (P2200, P229E) even with a brand new sensor. For GEN 2.0 sensors, software re-flashing capability ensures seamless operation even after ECU software updates.

CRITICAL NOTE – PART NUMBER VERIFICATION: Always verify the exact original sensor part number before purchasing. The 5WK96749B is the GEN 2.0 variant. Cross-reference numbers include 2872942, 4326872, 2520640C1, and others. Any mention of OEM names or OEM product ID numbers is intended for identification purposes only and does not indicate that it is an OEM part. Check OE and Continental numbers to ensure proper fit.

Failure symptoms summary:

• Check engine light illumination

• Diagnostic codes: P2200, P2201, P2202, P2203, P229E, P229F, U029E, P20EE

• Reduced engine power / limp mode

• Poor fuel economy / increased fuel consumption

• Increased DEF (AdBlue) consumption

• Failed emissions test

• DPF clogging risk

Proper selection (matching the part number 5WK96749 or 5WK96749B), confirmation of 12V system voltage, careful installation using correct torque (40–55 Nm), and mandatory ECU adaptation ensure full emissions compliance, optimal fuel economy, and reliable SCR system performance. Use this guide to confidently purchase and replace a failed 5WK96749 NOx sensor without compatibility issues or repeat failures.
