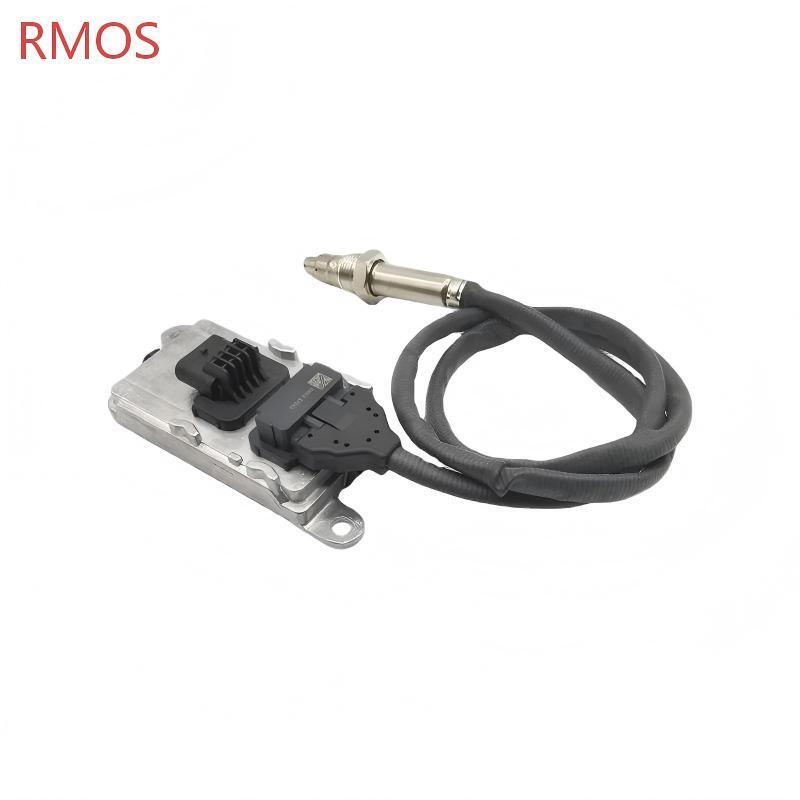

TS16949 Certificated Car Inlet And Outlet Exhaust Nox Sensor 5WK96756A

5WK96756A Car NOx Sensor Nitrogen Oxide Sensor

The 5WK96756A is a planar dual-cell limiting current type nitrogen oxide sensor designed for 24V heavy-duty diesel engine exhaust aftertreatment systems equipped with Selective Catalytic Reduction (SCR). As an electrochemical sensor that continuously measures the concentration of nitrogen oxides and oxygen in the exhaust stream, it communicates with the engine control unit via digital CAN bus protocol, enabling precise SCR system control and regulatory compliance with Euro V, Euro VI, EPA 2010, China 5/6, and equivalent emission standards.

The sensor consists of a ceramic sensing element and an electronic control unit, forming a single integrated unit installed in the exhaust gas system. It is a Gen 3.5 design, manufactured to Continental specifications with Continental OEM reference number A2C81234400-03. The sensor features a 5-pin interface design that offers improved response speed over earlier generation models.

The sensor measures the level of oxygen in the exhaust gas before and after the ceramic element; the difference between the two measurements is used to calculate the level of NOx present in the exhaust gas. The sensor’s electrochemical sensing element breaks down oxides of nitrogen into nitrogen and oxygen. The control unit then calculates the level of oxides of nitrogen present in the exhaust gas and transmits that data to the SCR controller. The SCR controller then adjusts the amount of Diesel Exhaust Fluid injected into the SCR catalyst to transform excess oxides of nitrogen into water and nitrogen.

The NOx sensor transmits the NOx value in the exhaust gas to the ECU in real time after normal operation. The ECU monitors whether the NOx value in the exhaust gas exceeds the standard through a set of nitrogen oxide monitoring programs.

Important: While the 5WK96756A is electrically compatible with both 12V and 24V systems, it is primarily designed and deployed for 24V commercial vehicle applications. Always verify your vehicle's electrical system voltage before installation.

The following part numbers are directly interchangeable with 5WK96756A. When searching for a replacement, these numbers may appear on the original sensor label, in supplier catalogs, or in vehicle manufacturer documentation. Always verify physical connector type, cable length, voltage rating, and thread size before purchasing.

This sensor is manufactured to Continental specifications with Continental OEM reference number A2C81234400-03. The Continental part number SNS156_5WK96756 corresponds to this sensor family.

⚠️ Suffix and supersession caution: Different suffixes (5WK96756A vs. 5WK96756) may indicate minor production revisions or calibration differences. Match the full alphanumeric string on your original sensor whenever possible. Do not rely solely on partial number matches. Always confirm fitment by original OEM part number and engine configuration before purchasing.

The 5WK96756A NOx sensor is designed for 24V commercial vehicle electrical systems and is primarily used with Cummins diesel engines in medium-duty and heavy-duty applications. Application coverage spans Euro V / Euro VI / EPA 2010 compliant commercial vehicles.

This sensor is most closely associated with Cummins diesel engines in commercial vehicle applications. It is specifically identified in engine manufacturer technical documentation for use with Cummins ISB6.7 engines.

Based on cross-reference information and supplier documentation, the 5WK96756A and its cross-references are compatible with the following engine platforms:

The 5WK96756A is found in a wide range of 24V commercial vehicle applications:

• Cummins-powered heavy-duty trucks – long-haul and regional transport
• Cummins-powered medium-duty trucks – delivery and utility vehicles
• Buses and coaches – public transportation with SCR aftertreatment
• Construction equipment – SCR-equipped diesel-powered machinery
• Doosan heavy equipment – industrial diesel applications

The 5WK96756A is specifically designated as a System Outlet NOx Sensor in manufacturer service documentation. It is typically installed downstream of the SCR catalyst (post-SCR position) and is used to confirm that legislated emissions limits have not been exceeded.

Most engines equipped with SCR aftertreatment systems utilize two NOx sensors:

• Upstream NOx sensor – mounted before the exhaust-gas treatment system, providing real-time feedback for the SCR control loop to precisely meter DEF injection
• Downstream NOx sensor – mounted after the SCR catalyst (System Outlet position), used primarily to verify emissions compliance

The 5WK96756A is designed for vehicles meeting:

• Euro V and Euro VI – European emissions standards
• EPA 2010 – North American heavy-duty emissions standards
• China 5 and China 6 – Asian market requirements
• Equivalent Tier standards for off-road equipment

Due to the diversity of commercial vehicle configurations, physical fitment alone does not guarantee proper function. To confirm compatibility:

1. Check your original sensor label – Match the full part number 5WK96756A or cross-references listed above
2. Verify voltage – Confirm your vehicle electrical system voltage (12V or 24V)
3. Count connector pins – 5-pin sealed connector type
4. Confirm mounting position – Determine whether the failed sensor is in the upstream (pre-SCR) or downstream (System Outlet) position
5. Check thread size – M20 x 1.5 external thread
6. Review engine service manual – For Cummins engines, service procedure 019-451 in Cummins Service Manual 2883567 applies for ISB6.7 CM2350 engines

⚠️ Important note: Compatibility extends beyond physical fitment. The sensor must match the ECU’s CAN communication protocol and is designed for specific engine management systems. Different vehicle manufacturers may use different calibration parameters even when the physical sensor appears identical. Always reference your original sensor part number or consult vehicle-specific documentation before purchasing.

A degraded or failed 5WK96756A NOx sensor will typically trigger one or more of the following symptoms. Early recognition can prevent secondary damage to the SCR catalyst, DEF injector, Diesel Exhaust Fluid system, or Diesel Particulate Filter.

The most common first indicator is the illumination of the check engine light on your dashboard. The ECU detects inconsistent, missing, or out-of-range NOx data and triggers a fault code. A faulty NOx sensor often illuminates the vehicle’s check engine light.

Common codes associated with NOx sensor failure include:

When NOx readings become inconsistent or implausible, the ECU reacts to protect emissions systems by limiting torque and engine speed. Commercial vehicles may experience speed limitation or restricted RPM until the issue is resolved. Failed sensors can trigger limp mode, DEF warnings, and power restriction countdowns.

When the NOx sensor is unable to maintain a reliable output, its signal quality will be set to “not reliable." This can occur during fast transients and fast variations in NOx sensor measurement value. Too long a duration of unreliable sensor signal quality is considered an error.

A faulty NOx sensor disrupts the ECU and SCR, triggering fault codes and leading to incorrect DEF dosing. False high NOx readings cause the SCR to over-dose DEF, resulting in rapid AdBlue depletion and potential crystallized injector. This is one of the most costly indirect symptoms.

A malfunctioning NOx sensor can cause the engine control unit to adjust operating parameters, leading to decreased fuel efficiency. Symptoms may include high fuel consumption, sudden jolts, or a jerky idle.

You may notice rough or inconsistent idling, weak acceleration, low engine power output, and uneven acceleration patterns as the ECU compensates for inappropriate NOx readings.

Overdosing of DEF leads to ammonia slip (NH₃), which may be visible as white vapor with a sharp, pungent odor exiting the tailpipe.

Critical note: The sensor must be replaced and reprogrammed in accordance with the vehicle manufacturer’s specifications. Various error messages may occur if the sensor is not programmed accordingly.

Before replacing the 5WK96756A, perform these basic checks:

1. Visual inspection – Look for damaged cable insulation, chafing against chassis components, bent pins, or a melted/cracked connector
2. Check DTC status – Using a diagnostic scan tool, verify whether the code is Active, or if Inactive, that the Confirmed DTC value is True under detailed status information
3. Heater resistance test – Measure between heater positive and heater ground pins using a multimeter. An open circuit or short indicates internal failure
4. Voltage supply – With key on and engine off, verify proper voltage at the sensor connector (12V or 24V per vehicle specification)
5. CAN bus integrity – Check CAN High and CAN Low lines for proper termination and absence of short circuits
6. Live data review – Observe NOx readings; a fixed reading of 0 ppm or pegged at maximum without change points strongly suggests a faulty sensor

Note: A recurring NOx sensor code may also be caused by an exhaust leak upstream of the sensor, poor DEF quality, a failed DEF injector, or a contaminated SCR catalyst. Perform a thorough system diagnosis before sensor replacement to avoid repeat failures. When repairing the SCR system, it is recommended to replace both sensors to ensure they are working in sync.

Purchasing the correct 5WK96756A NOx sensor and installing it properly is essential for reliable SCR performance and avoiding costly mistakes. Commercial vehicle operators should pay special attention to electrical compatibility, programming requirements, and installation procedures.

• Match the full printed number on your original sensor – 5WK96756A or confirmed cross-references including A2C81234400-03, A2C95913000-01, 301308-00498B, 12638378, and 12665216
• Check OEM compatibility – This sensor is specifically designed for Cummins ISB6.7 applications and other compatible diesel engines
• Confirm System Outlet designation – This sensor is typically used in the downstream (System Outlet) position after the SCR catalyst, not the upstream position
• Avoid “universal fit" listings – The 5WK96756A is a specific digital device with specific CAN message protocols

• Reputable supplier – Choose a supplier with documented quality control (IATF 16949, ISO 14001, TS16949, or CE certification) and a minimum 12-month warranty
• Avoid used or “remanufactured" – NOx sensors degrade internally from heat and contamination; used sensors almost always fail prematurely
• Price guideline – Authentic quality replacements typically range from $90 to $235 depending on supplier and warranty terms. Suspiciously low prices (below $60–70) may indicate counterfeit or defective products
• Certification – Look for suppliers with IATF16949 (automotive quality management) and CE certification

• Do not touch the ceramic sensing tip – Skin oils cause thermal shock cracking during the first heat-up cycle
• Remove protective cap immediately before installation only – Keep the sensor probe clean until ready to install
• Inspect cable routing – Ensure the new cable follows the original path, using existing clips and standoffs. Avoid sharp bends or contact with moving parts
• Clean the bung threads – Use a thread chaser (M20 x 1.5) to remove carbon buildup and rust before installation
• Inspect electrical connections – Check plug connections, contacts, and cables for proper functioning and cleanliness before installing the new sensor

Follow this sequence for proper installation:

1. Prepare the mounting location – Ensure the exhaust bung is clean and the threads are free of debris (use M20 x 1.5 thread chaser if necessary)
2. Remove protective cap – Remove the protective cover from the sensor probe only immediately before installation
3. Install the probe – Insert the sensor probe into the exhaust pipe bung. Hand-tighten the hexagon nut while holding the sensor body to prevent cable twisting
4. Apply thread compound (if specified) – Apply a thin coat of approved assembly compound to the sensor thread as necessary per manufacturer specifications
5. Torque properly – Use a torque wrench to tighten the hexagon nut to specified tightening torque. Recommended torque for M20 x 1.5 threads: 50 Nm ± 10 Nm. Maximum torque: 50 Nm
6. Mount the control unit – Install the sensor’s electronic control unit onto the mounting plate using the provided fasteners; follow applicable torque specifications
7. Connect the harness – Connect the mating 5-pin connector to the sensor. Ensure the connector interior is clean and dry; lock the connector securely in place
8. Secure the cable – Use original routing clips and standoffs to secure the harness away from heat sources and moving parts

A new NOx sensor will not function correctly until it is programmed and the ECU learns its baseline values and performs a plausibility check. Various error messages may occur if the sensor is not programmed accordingly.

Follow these steps:

1. Install the sensor as described in Section 5.5
2. Connect diagnostic tool – Use a professional scan tool capable of commercial vehicle diagnostics (e.g., SAE J1939 compatible tool)
3. Program the sensor – The sensor must be programmed in accordance with the vehicle manufacturer's specifications
4. Clear all existing DTCs – Use the diagnostic tool to clear all existing fault codes
5. Perform “NOx sensor replacement adaptation" – This function is typically found under “Special functions," “SCR system," or “Aftertreatment service" in diagnostic software. The ECU may command a specific warm-up sequence
6. Reset SCR learned values (if available) – This clears previously stored efficiency values from the old sensor
7. Drive cycle – Complete a 15–20 minute mixed driving cycle at operating temperature with varying engine loads
8. Verify readiness – After the drive cycle, check for any returning DTCs. Monitor live NOx data: it should fluctuate logically (higher readings under heavy load, lower readings at idle)
9. Check signal reliability – Ensure the sensor output remains reliable and does not show intermittent false readings

Without proper programming and adaptation, you may still see DTCs (e.g., P2200, P229E) even with a brand new sensor. This is a common cause of unnecessary returns. Always perform the adaptation procedure after replacement.

• System Outlet position verification: For Cummins ISB6.7 CM2350 engines, this sensor is specifically used as the System Outlet (downstream) NOx sensor. Service procedure 019-451 in Cummins Service Manual 2883567 applies
• Wiring harness condition: Commercial vehicles operate in harsh environments (vibration, heat, moisture, road salt). Inspect the full harness length for chafing, corrosion at connectors, and damaged insulation before condemning the sensor
• SCR system health: A recurring NOx sensor code may indicate a failed SCR catalyst, DEF quality issues, or a clogged DEF injector. These should be diagnosed before replacing the sensor a second time
• Replace both sensors when necessary: When repairing the SCR system, it is often recommended to replace both sensors to ensure they are working in sync
• ReCon parts availability: For certain Cummins applications, reconditioned (ReCon / RX) parts may be available for core credit returns

• In regions with mandatory emissions testing (EU, California, China, Australia, Brazil), a non-functioning NOx sensor will cause the MIL to illuminate, resulting in automatic inspection failure
• It is illegal to defeat, delete, or simulate the NOx sensor signal in any on-road vehicle. Always replace with a fully functional sensor
• Commercial fleets subject to emissions auditing must maintain properly functioning SCR systems, including accurate NOx sensing
• For vehicles subject to emissions warranty programs, check whether coverage is available before purchasing a replacement sensor

• Before purchasing, confirm the supplier offers a return or exchange for compatibility errors, preferably within 30 days of receipt
• Keep your original sensor until the new one is confirmed working – it serves as the ultimate reference for part number and fitment
• Request a data sheet or installation guide that includes pinout and programming steps if available
• Most reputable suppliers offer a 12-month warranty against manufacturing defects. Some suppliers offer one-for-one compensation in case of manufacturing defects

The NOx Sensor 5WK96756A (OEM cross-references: A2C81234400-03, A2C95913000-01, 301308-00498B, 12638378, 12665216, 2872082) is a critical emissions aftertreatment component for 24V heavy-duty diesel commercial vehicles. As a Gen 3.5 sensor manufactured to Continental specifications, it features a 5-pin connector interface with improved response speed over earlier generation sensors.

This sensor is primarily associated with Cummins diesel engines, particularly the ISB6.7 CM2350 platform, and is specifically designated as a System Outlet (downstream) NOx sensor, installed after the SCR catalyst to verify emissions compliance. The sensor features a ZrO₂ ceramic element, M20 x 1.5 threads, and supports both 12V and 24V electrical systems.

Measuring range: 0–2500 ppm NOx and 0%–21% O₂, with response time under 3500 ms and light-off time less than 100 seconds. Design life is 6,000 hours or 350,000 km.

Critical installation requirements:

• Torque specification: 50 Nm ± 10 Nm for M20 x 1.5 threads
• Mandatory programming and adaptation required after installation – sensor will not function correctly without ECU adaptation
• Do not touch ceramic sensing element
• Inspect electrical connections for cleanliness and proper function before installation

Proper selection (matching part number and cross-references, confirming System Outlet position), careful installation using correct torque (50 Nm ± 10 Nm), and mandatory ECU programming and adaptation ensure full emissions compliance (Euro V/VI/EPA 2010), optimal fuel economy, and reliable SCR system performance.

Use this guide to confidently purchase and replace a failed 5WK96756A NOx sensor without compatibility issues or repeat failures.

*For further technical support, refer to your engine or vehicle manufacturer's service documentation or consult a qualified diesel emissions specialist. For Cummins ISB6.7 applications, refer to service procedure 019-451 in Cummins Service Manual 2883567.*
