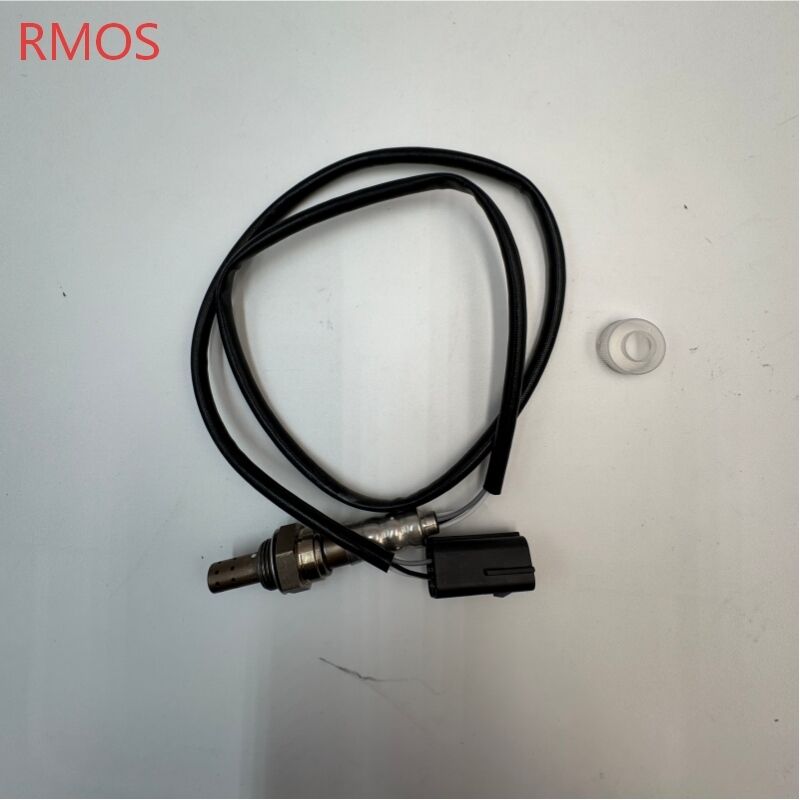

OZA632-SZ4 Car Lambda Sensor Peugeot 307 For Hyundai elantra custom

OZA632-SZ4 Car Oxygen Sensor For Hyundai / Kia / Suzuki / Mazda / Peugeot

Technical Notes:
This is a 4‑wire heated narrow‑band lambda sensor based on zirconium oxide (ZrO₂) technology. The sensor is constructed with a ceramic element composed of Zirconium Oxide, Alumina and Yttrium Oxide, which generates a voltage signal based on the oxygen concentration difference between the exhaust gas and the outside air. When the air‑fuel mixture is rich (excess fuel), the sensor outputs approximately 0.6 – 1.0 V; when the mixture is lean (excess oxygen), the output drops to near 0 V. The ECU uses this feedback signal to continuously adjust the fuel injection amount to maintain the ideal stoichiometric ratio (approx. 14.7:1 for petrol engines), thereby optimising combustion efficiency, minimising exhaust emissions and reducing fuel consumption.

The internal heating element brings the ceramic sensing tip up to operating temperature quickly after cold start, allowing the ECU to enter closed‑loop fuel control sooner and dramatically reduce cold‑start emissions. All sensors are 100% tested to meet or exceed original equipment quality standards.

The following OEM and interchange part numbers are direct cross‑references for this lambda sensor. Always verify physical fitment (connector shape, cable length and thread size) with your original part before purchasing.

Cross-Reference Notes:

• OZA632 is a common root number used across multiple manufacturers, including NTK and NGK for their aftermarket oxygen sensor ranges. The suffix (SZ4, SZ1, SZ3, KH2, KH3, KH4, KH6) typically indicates variations in cable length, connector type or specific vehicle application – all share the same fundamental design and function.

• The LS140483 (CALORSTAT by Vernet) interchange number is used across multiple European aftermarket catalogues for vehicles including Hyundai Coupe RD, Kia Rio, Hyundai Lantra 2 (J-2) and Kia Rio DC.

• The 250-24384 (WALKER) cross‑reference is also widely recognised for this OE fitment.

• The numbers 392102X010, 392102X020, 0K32A18861, 0K32B18861, 3921023211 are genuine Kia / Hyundai OEM references that interchange with this sensor.

• 5WY2E06A is another variant number recorded for the OZA632 series, often associated with Siemens OEM sensors for Peugeot applications.

• Always perform a physical comparison of your old sensor’s connector shape, pin count, cable length and thread size before purchasing, as aftermarket manufacturers may produce sensors with the same OE reference but with slight variations.

This lambda sensor is designed as an upstream (pre‑catalyst / front) oxygen sensor for a wide range of vehicles, particularly those from Hyundai, Kia, Suzuki, Mazda and Peugeot across Asia, Europe, the Middle East and North America. The sensor is a direct‑fit part with a vehicle‑specific square 4‑pin male connector.

Fitment Notes:

• This is an upstream (pre‑catalyst / front) oxygen sensor for the majority of applications listed above. It is installed before the catalytic converter (generally referred to as the “regulating probe”) and directly influences the ECU’s fuel trim adjustments.

• Upstream and downstream O₂ sensors are not interchangeable. Replacing an upstream sensor with a downstream unit (or vice versa) will result in improper ECU readings and persistent fault codes.

• For 4‑cylinder vehicles listed above, there are typically two oxygen sensors: upstream (pre‑cat / regulating) – this part, and downstream (post‑cat / diagnostic) – a different part number.

• For V6 vehicles (Santa Fe, Tucson, Magentis, Carnival, Sportage, etc.), there are two upstream sensors – one for each exhaust bank (Bank 1, Sensor 1 and Bank 2, Sensor 1). Check your vehicle’s exhaust configuration before ordering multiple units.

• This sensor also appears in Iran‑market vehicles (Saipa Tiba, IKCO Runna, Saipa Pride) due to the prevalence of Siemens fuel injection systems and Peugeot derivatives.

• Not compatible with diesel engines – diesel O₂ sensors use different calibration parameters and part numbers.

• The vehicle fitment information above is a guide only. Always confirm compatibility using your vehicle’s VIN or by physically inspecting your old sensor‘s part number and connector shape before purchasing.

A faulty lambda sensor degrades the ECU‘s ability to accurately monitor the air‑fuel ratio and manage the catalytic converter. While the engine may still run, fuel economy, emissions and OBD‑II readiness are all negatively affected. Replace your lambda sensor immediately if you experience any of the following symptoms.

Potential Causes of Sensor Failure:

• Normal wear and tear – Lambda sensors typically degrade after 60,000 – 100,000 miles (100,000 – 160,000 km) of operation due to continuous exposure to high‑temperature exhaust gases (up to 930 °C) and thermal cycling stress.

• Heater circuit failure – The internal heating element opens or shorts (resistance falls outside the expected range). This causes the sensor to respond extremely slowly or not at all when cold, triggering P0030–P0037 codes.

• Contamination (“sensor poisoning”) – Oil, coolant, silicone‑based sealants or the use of leaded fuel permanently coats the ceramic sensing tip, destroying its ability to detect oxygen. Common sources include worn piston rings / valve seals (oil contamination) and the use of silicone sealants near the exhaust system during maintenance.

• Physical impact damage – Dropping the sensor (even from a low height) or impact from road debris can crack the fragile ceramic element, rendering the sensor inoperative.

• Wiring / connector issues – Damaged wiring, loose connections, corrosion at the connector, or an intermittent open / short circuit can trigger fault codes even when the sensor itself is healthy.

• Exhaust leaks upstream of the sensor – False oxygen readings from an upstream exhaust leak (cracked manifold, failed gasket, etc.) will cause erratic sensor output and may be incorrectly attributed to a faulty sensor.

Diagnostic Tips:

• A failing oxygen sensor frequently triggers the MIL without any noticeable drivability change initially. Fuel consumption, however, is still negatively affected.

• To diagnose a faulty sensor:

  • Heater circuit test: Use a digital multimeter to measure the resistance across the two heater circuit pins. At room temperature, a healthy sensor should read within the expected specification (consult your vehicle service manual). An open circuit (infinite resistance) or short circuit (0 Ω) indicates failure.

  • Sensor signal test: Use an OBD‑II scanner or oscilloscope to monitor the sensor voltage output under steady‑state driving. A healthy narrow‑band upstream sensor fluctuates continuously between approximately 0.1 V – 0.9 V (typically oscillating several times per second). If the voltage remains steady (stuck high, stuck low, or at a fixed mid‑range value), does not fluctuate, or changes very slowly, the sensor is failing.

• P0130 often indicates a lean‑biased sensor performance issue – the oxygen sensor is not responding correctly to changes in exhaust gas composition, which may be because the engine is actually running lean or because the sensor itself has failed.

• P0420 can be caused by a failing downstream oxygen sensor, a failing catalytic converter, or an upstream sensor that is no longer providing accurate readings to the ECU.

1. Confirm Fitment – Physical Inspection is Essential

• This is a direct‑fit sensor with a square 4‑pin male connector, M18 × 1.5 thread, 418 mm cable length, requiring a 22 mm (7/8”) oxygen sensor socket for removal and installation.

• Do not purchase based solely on the OE number – aftermarket manufacturers may produce sensors with the same OE reference but with slight differences in cable length, connector shape or calibration parameters. If the connector does not match, do not install.

• Physical inspection of your original sensor is strongly recommended. Compare the connector shape (square), pin count (4), cable length and thread size before ordering.

2. Verify Sensor Position – Upstream (Pre‑Catalyst)

• This sensor is designed for the upstream (pre‑catalyst / front) position for the majority of applications listed above (Hyundai, Kia, Suzuki, Mazda, Peugeot).

• Upstream and downstream O₂ sensors are not interchangeable in most vehicles. Replacing an upstream sensor with a downstream unit (or vice versa) will result in improper ECU readings and persistent fault codes.

• For most 4‑cylinder vehicles, there are two oxygen sensors: upstream (pre‑cat / regulating) and downstream (post‑cat / diagnostic). This part is for the upstream position.

• If your original sensor is located after the catalytic converter, a different part number may be required. Verify the position of your old sensor before ordering.

3. Check Connector Type and Cable Length

• The OE connector for this part is a square 4‑pin male terminal connector.

• Cable length: 418 mm (approx. 16.5 inches). The overall length from the sensor tip to the end of the connector is 540 mm.

• If your original sensor has a different cable length (significantly shorter or longer), a different part number may be required. Aftermarket sensors may have minor variations in connector housing colour while retaining the same 4‑pin square configuration.

4. Replacement Interval

• Lambda sensors degrade gradually over time, often without triggering immediate fault codes. Their switching response becomes slower and their voltage range narrows with age and mileage.

• Replacement every 100,000 – 160,000 km (60,000 – 100,000 miles) is recommended to maintain optimal fuel efficiency, catalytic converter health, proper emissions output and correct OBD‑II monitor readiness.

• Even if no Check Engine Light is present, an aged sensor will still respond more slowly than a new one, negatively affecting fuel economy and emissions. Proactive replacement at the recommended interval can save up to 15% on fuel consumption.

5. Installation Tips

Before Installation:

• Allow the exhaust system to cool completely before removal – the exhaust manifold and catalytic converter remain dangerously hot for a significant period after engine shutdown (up to 30 minutes).

• Disconnect the vehicle‘s battery negative (-) cable before starting work to prevent electrical issues, potential ECU damage or accidental short circuits.

• Use a high‑quality O₂ sensor socket (22 mm / 7/8″) with an offset design to prevent stripping the sensor‘s flats and to provide better access in confined engine bays. A standard deep socket can easily damage the sensor housing or its flats.

Removal of the Old Sensor:

• If the sensor is difficult to remove when cold, it may be easier when the exhaust is warm (run the engine for 1‑2 minutes, then allow it to cool until it is warm but not scalding). Exercise extreme caution to avoid burns – wear heavy‑duty work gloves.

• Do not use excessive force – damage to the exhaust bung threads can result in expensive repairs and potentially require exhaust component replacement or thread repair.

• Disconnect the electrical connector carefully – press the locking tab and pull only the connector housing (never pull directly on the wires).

• Inspect the old sensor’s connector, cable and tip for signs of contamination (oil, soot, coolant residue), melting or cracking. Note any contamination – this indicates an underlying engine issue that must be addressed before installing the new sensor.

Installation of the New Sensor:

• Do not apply additional anti‑seize compound unless the new sensor‘s threads are completely dry. Many OE‑type sensors are factory‑coated with anti‑seize. Adding extra can contaminate the sensor tip and cause premature failure. If the threads are dry, apply a small amount of sensor‑safe anti‑seize compound to the threads only – never to the sensor tip.

• Do not use silicone sealants anywhere near the exhaust system – silicone vapour will permanently contaminate and destroy the oxygen sensor (this is one of the most common causes of premature failure).

• Avoid touching the sensor tip – skin oils contaminate the ceramic sensing element and cause inaccurate readings and premature failure. Always handle the sensor by the hexagon nut or connector body.

• Do not drop the sensor – the ceramic element inside the metal housing is brittle and can crack upon impact, rendering the sensor inoperative even if no external damage is visible.

• Tighten to the correct torque – typical torque for an M18 × 1.5 oxygen sensor is 40 – 50 Nm (30 – 37 ft‑lb) . Use a torque wrench to avoid overtightening.

  • CAUTION: Overtightening can damage threads in the exhaust bung and may crack the sensor housing. Undertightening may cause exhaust leaks and false oxygen readings.

• Route the wiring harness securely using the original clips and routing guides to prevent contact with hot exhaust components (exhaust manifold, catalytic converter, EGR pipes) or moving parts (drive shafts, steering components, cooling fans).

• Reconnect the electrical connector fully – an audible click confirms correct engagement. Ensure the locking tab is fully seated.

• Reconnect the vehicle‘s battery after installation is complete.

Post‑Installation:

• Start the engine and allow it to reach normal operating temperature (closed‑loop mode).

• Verify that no exhaust gas leakage exists around the sensor bung (listen for “puffing” sounds or use a soap‑and‑water solution sprayed around the threads – bubbles indicate a leak).

• Use an OBD‑II scanner to clear any existing fault codes.

• Drive the vehicle through a complete drive cycle (typically 10‑20 minutes of mixed driving: stop‑start traffic, steady cruising and moderate acceleration) to allow the ECU to re‑learn adaptation values and complete oxygen sensor and catalyst monitors.

• After the drive cycle, re‑scan for fault codes to confirm that the oxygen sensor monitors have completed and that no new codes have appeared.

6. Required Tools

7. Quantity Needed – Upstream Sensor

• 4‑cylinder petrol engines (Hyundai Lantra J-2, Kia Rio, Suzuki Forenza, Mazda 626, Peugeot 206, etc.) typically have one upstream sensor (Bank 1, Sensor 1) and one downstream sensor (Bank 1, Sensor 2). This part is the upstream sensor.

• V6 petrol engines (Hyundai Santa Fe, Tucson, Trajet, Kia Magentis V6, Sportage V6, Carnival V6, etc.) have two upstream sensors – one for each exhaust bank (Bank 1, Sensor 1 and Bank 2, Sensor 1). If both upstream sensors are faulty, you will need two of this part number.

• Check your vehicle‘s exhaust configuration before ordering multiple units. If both upstream and downstream sensors are faulty, you will need the appropriate part numbers for each position – downstream sensors generally use different part numbers.

8. Professional Installation Recommended

• While this is a direct‑fit part, professional installation is strongly advisable if you are not experienced with exhaust system work or if the sensor is located in a difficult‑to‑reach position (deep inside the engine bay, close to the exhaust manifold, or on a vehicle with limited ground clearance).

• After replacement, the ECU may need to have adaptation values reset using manufacturer‑specific diagnostic equipment.

• Improper installation can lead to:

  • Exhaust leaks around the sensor bung

  • Cross‑threaded or damaged exhaust bung threads – expensive to repair

  • Sensor damage from contamination or mishandling

  • Wiring damage from contact with hot exhaust components

  • Persistent ECU fault codes despite a correctly functioning sensor

• If your vehicle has covered more than 60,000 miles, it is common practice to replace both upstream sensors (if the vehicle has two) at the same time, as they tend to wear at the same rate.

9. Warranty

• OE‑manufactured sensors typically include a manufacturer warranty – commonly 1 year from the date of purchase. Aftermarket equivalents may offer varying warranty periods (commonly 1 to 2 years, and some premium aftermarket sensors carry extended warranties of up to 3 years / 60,000 miles).

• Check with your specific retailer for their warranty terms and return policy.

• Important: Most warranties are voided if the sensor tip shows contamination from improper handling (e.g., touching the tip, dropping the sensor, silicone exposure, or installation with contaminated hands / tools). Oxygen sensors are often non‑returnable except for approved warranty replacement due to contamination risk. Keep your original packaging until the new sensor is installed and confirmed working.

10. Common Mistakes to Avoid

Disclaimer: While we strive for accuracy, vehicle specifications and OE part numbers may vary by production date, market region and vehicle trim level. The vehicle fitment information provided for this part number is based on available cross‑reference data and is a guide only – not an exhaustive compatibility list. You should verify physical fitment (square 4‑pin connector, 418 mm cable length, M18 × 1.5 thread) and confirm the position (upstream / pre‑catalyst) of your old sensor before purchasing. This sensor is not compatible with diesel engines. If your vehicle is not listed above, or if you are unsure of compatibility, consult your vehicle‘s manufacturer specifications, an authorised dealer or a qualified mechanic before ordering.
