Auto Oxygen Sensor
>
Car Oxygen Sensor 1588A046/1588A206/1588A207/MN163400/MN163401 For Mitsubishi
|
Car Oxygen Sensor 1588A046/1588A206/1588A207/MN163400/MN163401 For Mitsubishi
| Place of Origin | China |
| Brand Name | RMOS |
| Model Number | 1588A046/1588A206/1588A207/MN163400/MN163401 |
Product Details
Technical Information:
Sensor Type: O2
OE Number:
1588A046/1588A206/1588A207/MN163400/MN163401
Model:
Mitsubishi
Thread Diameter:
M18 × 1.5
Light-Off Time:
≤ 15 Seconds
Connector Type:
Direct-Fit
Cable Length:
Approx. 330 Mm
Tested:
100% Tested
Quality:
OE Quality
Highlight:
Mitsubishi car oxygen sensor
,Auto oxygen sensor 1588A046
,Oxygen sensor MN163401
Payment & Shipping Terms
Minimum Order Quantity
50
Price
To Be Negotiated
Packaging Details
Foam Bag + Paper box
Delivery Time
1-4weeks
Payment Terms
T/T
Supply Ability
20000pcs/Month
Product Description

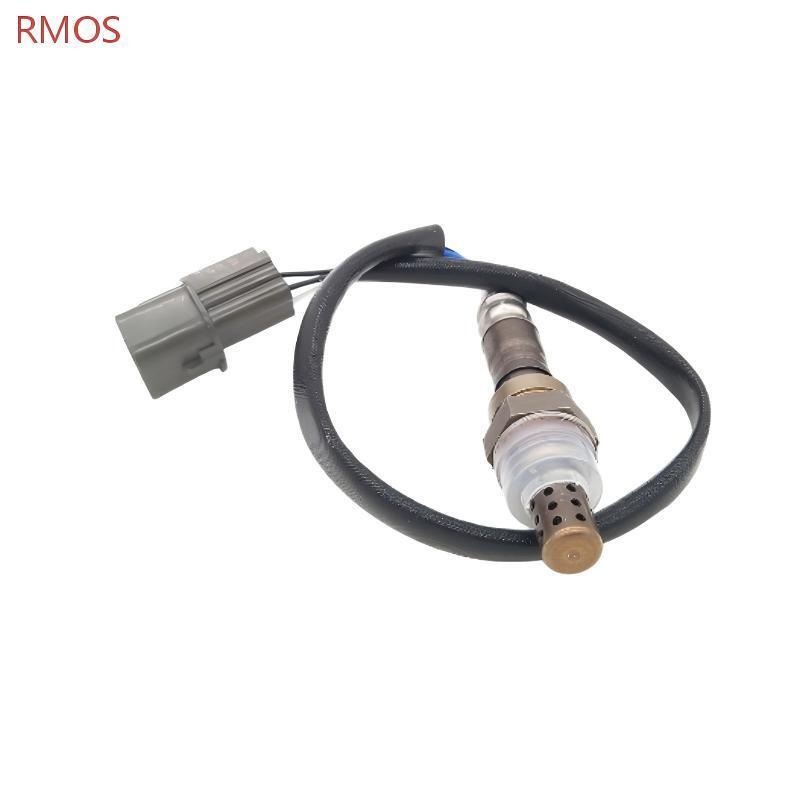

Mitsubishi Car Oxygen Sensor
OE Part Numbers: 1588A046 / 1588A206 / 1588A207 / MN163400 / MN163401
These Lambda Sensors are Original Equipment (OE) components manufactured for Mitsubishi vehicles. The OE numbers 1588A046, 1588A206, 1588A207, MN163400, and MN163401 are closely related and frequently cross-referenced together across multiple Mitsubishi vehicle platforms.
Important Note: These OE numbers represent different sensors with different cable lengths and connector configurations. Always verify your original sensor's part number, connector shape, cable length, and position before ordering.
Product Specifications
| Specification | 1588A046 | 1588A206 | 1588A207 | MN163400 | MN163401 |
|---|---|---|---|---|---|
| Sensor Type | Heated, Switching-type | Heated, Switching-type | Heated, Switching-type | Heated, Regulating Sensor | Heated, Regulating Sensor |
| Connector | 4-pin | 4-pin | 4-pin | 4-pin | 4-pin |
| Cable Length | 330 mm | 330 mm | 330 mm | 330-660 mm | 365-580 mm |
| Thread Size | M18 × 1.5 | M18 × 1.5 | M18 × 1.5 | M18 × 1.5 | M18 × 1.5 |
| Socket Size | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm |
| Fitting Position | Right, Front, Upper | Upper, Right | Left, Front | Right Front / Before Catalytic Converter | Before Catalytic Converter |
| Replacement Interval | 160,000 km | 160,000 km | 160,000 km | 160,000 km | 160,000 km |
Technical Features
- 4-wire heated oxygen sensors manufactured to Mitsubishi's original equipment standards
- Built-in heating element for quick operation after cold starts
- Stainless-steel shell construction for rust resistance and durability
- Zirconium Oxide ceramic element with platinum vapor deposition
- Factory pre-greased threads with anti-seize compound for easy installation
Cross-Reference Numbers
Primary OE Numbers: 1588A046, 1588A206, 1588A207, MN163400, MN163401
Related Mitsubishi OE Numbers: 1588A165, 1588A209, 1588A210, MD369189, MD369190, MN153035, MN153036, MN183468, MN183469, MR507378, MR578604
Aftermarket Equivalents: DOX-0349, DOX-0335, DOX-0113, ESL-MS-013, ESL-MS-014, ADBP700066, LLB839, VE381273, 1998240, 570112A, ES2029912B1, ES20412-12B1
Compatible Vehicles
Position Note: These sensors are used in different positions depending on the specific vehicle and engine application. Always verify the position of your original sensor before ordering.
| Model | Generation | Year Range | Engine / Notes |
|---|---|---|---|
| Eclipse | 4th Gen | 2006-2012 | 2.4L L4 (4G69), Right Front Upper position |
| Galant | 9th Gen | 2004-2012 | 2.4L L4 (4G69), Upper Right / Left Front position |
| Outlander | CU (1st Gen) | 2001-2008 | 2.4L L4 (4G69, 4G64), Before catalytic converter |
| Outlander XL | CW (2nd Gen) | 2006-2012 | 2.4L L4, Before catalytic converter |
| Grandis | NA4W | 2004-2011 | 2.4L MIVEC (4G69), 165-177 HP |
| Airtrek | CU_W | 2003-2006 | 2.4L 4WD (4G69, 4G64), 139-160 HP |
| Pajero | III (V65W, V75W) | 2000-2007 | 3.5L V6 GDI (6G74), 203 HP |
Engine Compatibility
| Engine Code | Displacement | Applications |
|---|---|---|
| 4G64 (16V) | 2.4L | Outlander I, Airtrek |
| 4G69 | 2.4L | Eclipse, Galant, Outlander, Grandis, Airtrek |
| 6G74 | 3.5L V6 GDI | Pajero III |
Fitment Verification: These sensors are installed before the catalytic converter in most applications. Not compatible with diesel engines. Always confirm compatibility using your vehicle's VIN or by physically inspecting your old sensor before ordering.
