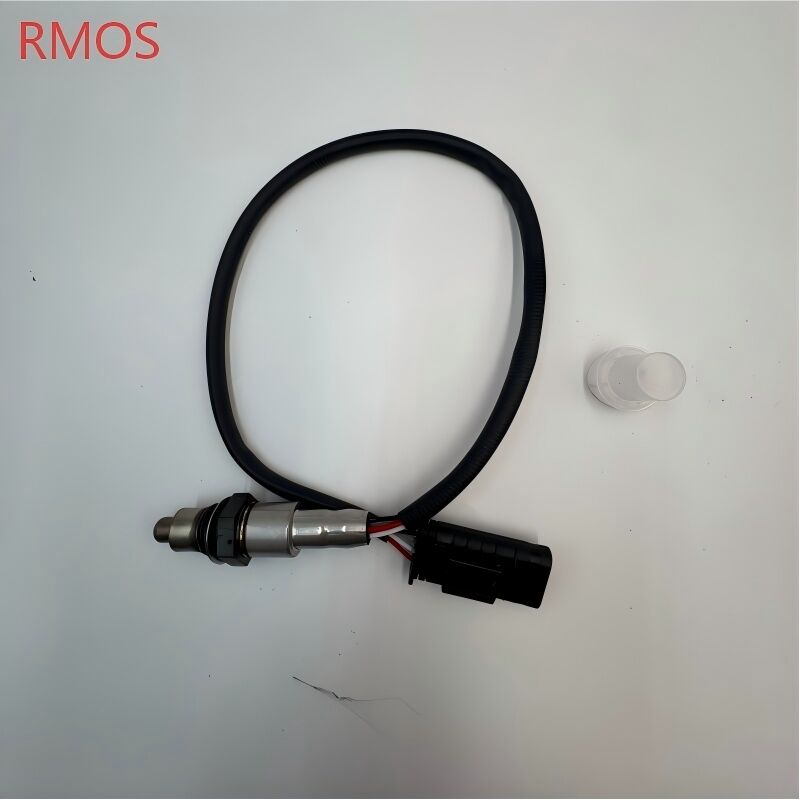

12609457 Car Oxygen Sensor For Cadillac / Chevrolet / GMC / Buick

Technical Notes:

• This is a 4-wire heated oxygen sensor designed for downstream (post-catalyst) installation

• The Powertrain Control Module (PCM) uses the signal from this sensor to monitor catalytic converter efficiency and adjust fuel trims

• Also known as a "diagnostic sensor" as its primary function is to verify proper catalyst operation

This Lambda Sensor replaces the following Original Equipment Manufacturer (OEM) and interchange part numbers. Check your old sensor to confirm a match:

Important Notes on Cross-Reference:

• The 15698 interchange number is widely used across multiple aftermarket brands

• The 234-4256 number is an aftermarket code that crosses to this OEM part

• Aftermarket sensors from different manufacturers may have variations in connector shape, wire length, or sensor tip design. Physical inspection is strongly recommended

This Lambda Sensor is exclusively used in General Motors (GM) vehicles, including Cadillac, Chevrolet, GMC, and Buick models. It is designed for downstream (post-catalyst / rear) installation positions and is compatible with a wide range of V8 and V6 gasoline engines.

Fitment Notes:

• Position: This is a downstream (post-catalyst / rear) oxygen sensor. Do not use for upstream (pre-catalyst) positions

• Engine compatibility: Works with GM V8 engines (including 4.8L, 5.3L, 6.0L, 6.2L) and V6 engines found in these vehicle applications

• This list includes the most common applications but may not be exhaustive. Always verify with your vehicle's VIN

Consider replacing your Lambda Sensor if you experience any of the following:

Check Engine Light (MIL) Illumination

• OBD-II fault codes related to catalyst efficiency or O2 sensor circuit:

  • P0420 (Catalyst System Efficiency Below Threshold - Bank 1)

  • P0430 (Catalyst System Efficiency Below Threshold - Bank 2)

  • P0136-P0140 series (O2 Sensor Circuit Malfunction - Bank 1 Sensor 2)

  • P0156-P0160 series (O2 Sensor Circuit Malfunction - Bank 2 Sensor 2)

Performance & Driveability Issues

• Poor acceleration or hesitation – Incorrect signals cause improper fuel adjustments

• Rough idle or stalling – ECU may default to rich mixture settings

• Reduced engine performance – Especially noticeable under load

Fuel & Emissions Symptoms

• Increased fuel consumption – A faulty downstream sensor can mislead the ECU about catalyst efficiency, indirectly affecting fuel trims

• Failed emissions test – Incorrect readings prevent proper catalyst monitoring

• Strong fuel smell from exhaust – Indicates rich-running condition

Potential causes of sensor failure:

• Normal wear and tear – Replacement is typically recommended every 100,000 miles (160,000 km)

• Contamination – Oil, coolant, or silicone sealants can damage the sensing element

• Heater circuit electrical failure – Internal heating element stops functioning

• Physical damage – Impact from road debris or improper handling during installation

• Wiring issues – Broken wires inside insulation, causing intermittent or odd error codes

Diagnostic Tip:

• Many owners have reported that non-OE sensors (even from major brands) may not provide the same performance or fuel economy as genuine GM sensors for these vehicles. Some users experienced a 10-15% drop in MPG after installing aftermarket sensors

1. Confirm Position - This is a DOWNSTREAM Sensor

• This part number (12609457 / 213-4229) is specifically designed for the post-catalyst (downstream / rear) position

• The upstream (pre-catalyst) sensors for these vehicles typically require part numbers 12583804 or 213-3866 and are NOT interchangeable

• Verify the location of your old sensor before ordering

2. OE vs. Aftermarket - Important Quality Note

• This sensor is a GM Genuine Parts / ACDelco OE component

• Aftermarket sensors from other brands (using cross-reference numbers like 15698 or 234-4256) may have different specifications:

  • Sensor tip design variations

  • Different internal calibration parameters

  • Different wire lengths or connector fitment

• Owner/mechanic reports indicate that non-OE sensors may result in decreased fuel economy (up to 15% drop) for these GM vehicles

• When maximum performance and efficiency are required, OE-spec sensors are strongly recommended

3. Connector & Physical Fitment Verification

• This sensor features a square 4-pin female connector

• Wire length is approximately 330 mm (12.99 inches)

• Thread diameter is M18 x 1.5 (18mm / 0.71 inch)

• Always visually inspect your old sensor's connector shape and wire length before ordering

4. Programming / ECU Calibration Note

• Programming may be required after installation according to some specifications

• The ECU may need to be reset or adaptation values cleared using a diagnostic scanner

• Professional installation with diagnostic equipment is recommended to ensure proper operation

5. Installation Tips

• Allow exhaust system to cool completely before removal to avoid burns

• Use an O2 sensor socket (22mm or 7/8") to prevent stripping

• Apply anti-seize compound to the threads (avoiding the sensor tip) to prevent seizing - ensure compatibility with O2 sensors

• Do not use silicone sealants near the exhaust system - contamination will destroy the sensor

• Avoid touching the sensor tip - skin oils can contaminate the sensing element

• Tighten to manufacturer specification (approximately 40-50 Nm / 30-37 ft-lb) - do not overtighten

• Secure wiring harness with proper clips to prevent contact with hot exhaust components or moving parts

6. Replacement Interval

• Lambda sensors degrade over time, often without triggering immediate fault codes

• Replacement every 100,000 miles (160,000 km) is recommended to maintain:

  • Optimal fuel efficiency

  • Catalytic converter health and longevity

  • Proper emissions output

7. Required Tools

• O2 sensor socket (22mm / 7/8") or deep offset wrench

• Ratchet and extension bar (for access on trucks/SUVs)

• Anti-seize compound (sensor-safe)

• Jack and jack stands (if under-vehicle access requires lifting)

• OBD-II scanner (to clear fault codes and verify operation after replacement)

8. Quantity Needed

• V8 engines (e.g., Escalade, Silverado, Tahoe, Yukon) have two downstream sensors - one for each exhaust bank

• V6 engines may have one or two downstream sensors depending on configuration

• Check your vehicle's exhaust configuration to determine how many sensors you need

9. Warranty

• GM Genuine Parts / ACDelco components typically include a manufacturer warranty

• Aftermarket alternatives may have varying warranty periods (typically 12 months to lifetime, depending on brand)

• Check with your specific retailer for their warranty terms and return policy

• Important: Warranties may be voided if the sensor tip shows contamination from improper handling
