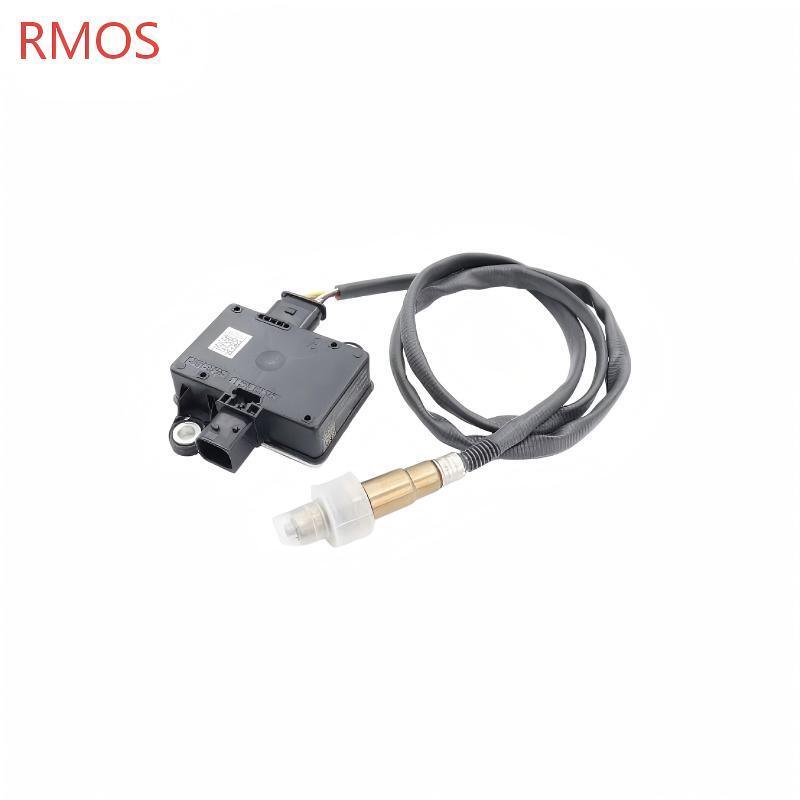

5V LIN Particulate Matter PM Sensor 8983300950 IP5X Rated

Particulate Matter Sensor 8983300950/0281007883/0281006894

Measurement Principle:
The sensor utilizes laser scattering technology to detect particulate matter in the exhaust gas. As exhaust flows through the measurement chamber, particulate matter scatters the laser beam. The sensor's internal processor analyzes the scattered light patterns to determine both the concentration and size distribution of particles, transmitting this data to the ECM via the communication interface.

Environmental Operating Conditions:

• Designed for the demanding environment of diesel exhaust systems

• Robust construction with appropriate housing materials for thermal and chemical resistance

• Stable operation across a wide range of exhaust temperatures and pressures

The Particulate Matter Sensor (8983300950) is referenced under various Original Equipment (OE) part numbers across different vehicle applications. When searching for a replacement, the following OE references may be applicable:

The Particulate Matter Sensor (8983300950) is designed for diesel engine applications equipped with DPF-based emissions control systems. This sensor is specifically utilized in pickup truck applications.

Vehicle Applications:

General Compatibility Notes:

• This sensor is compatible with diesel engines utilizing DPF-based emissions control systems

• Applications include pickup trucks and light-duty diesel vehicles

• Different engine variants within the same model family may require different sensor configurations

Important Compatibility Verification:

• Always verify compatibility by consulting the vehicle's Original Equipment Manufacturer (OEM) specifications

• Confirm fitment by referencing the vehicle's VIN (Vehicle Identification Number) or engine serial number

• Check the original sensor part number installed on your vehicle before ordering a replacement

A failing or malfunctioning Particulate Matter Sensor can manifest through various symptoms. Early recognition of these signs can prevent more severe and costly emissions system damage.

The most common and immediate indicator of a sensor issue is the illumination of the check engine light on the vehicle's instrument panel. The ECM detects abnormal readings or circuit malfunctions and stores corresponding diagnostic trouble codes (DTCs).

Many modern diesel vehicles display specific DPF-related warning messages when the particulate matter sensor fails. These warnings indicate that the DPF regeneration process may not be functioning properly.

When the sensor fails to correctly detect the filter level saturation, the ECM may reduce engine power output as a protective measure. This is often accompanied by limited engine RPM and reduced acceleration capability.

Since the sensor provides critical data for verifying DPF efficiency, a malfunctioning sensor can cause the vehicle to fail OBD-II emissions testing. The powertrain control module cannot confirm that the DPF is operating within required parameters.

A failing sensor can result in improper DPF regeneration scheduling, leading to increased soot accumulation and visible black or grey smoke from the exhaust.

When the sensor fails to provide accurate data, the DPF regeneration process may not occur at optimal intervals, resulting in decreased fuel efficiency.

The vehicle may experience incomplete or excessively frequent DPF regeneration cycles, as the ECM lacks accurate particulate matter concentration data to determine the optimal regeneration timing.

When the sensor fails, one or more of the following OBD-II codes may be stored in the ECM:

Understanding the root causes of sensor failure can help prevent premature replacement:

• Presence of water in the exhaust pipes – Condensation or moisture ingress can damage the sensor's internal electronics

• Pipework clogged by unburned soot – Particularly common on vehicles making frequent short journeys where the DPF does not reach regeneration temperature

• Problems caused by regenerations or cleaning of the DPF – Improper cleaning procedures can damage the sensor

• Damage to connecting cables, connector, or sensor body – Physical damage from road debris, heat exposure, or improper handling

• Deterioration or leakage between the pipes and the sensor or the DPF – Air leaks can cause inaccurate readings

• Wiring harness issues – Chafed wires, broken wires inside insulation, or poor terminal tension can cause open or short circuit conditions

When purchasing a replacement Particulate Matter Sensor (8983300950), consider the following factors to ensure proper fitment, performance, and longevity:

Ensure that the sensor meets or exceeds Original Equipment Manufacturer specifications for your specific vehicle application. The sensor should be manufactured to the same quality and performance standards as the original component.

• Always verify the sensor part number against your vehicle's specific requirements

• Check compatibility with your vehicle's make, model, engine type, and model year

• Consult your vehicle's service manual or authorized dealer for the correct part number

• Cross-reference the OE number from your original sensor with the replacement part

• Confirm the operating voltage matches your vehicle's electrical system specifications

• Purchase from reputable suppliers to avoid substandard products

• Authentic sensors are manufactured with precision-engineered components to ensure accurate particulate detection

• sensors may not meet the same accuracy or durability standards, potentially leading to premature failure or incorrect emissions readings

• Professional installation is recommended, as the sensor is integrated into the exhaust system and emissions control network

• Proper handling is essential to avoid damage to the sensing element

• The sensor requires correct electrical connection to the vehicle's communication network

• Following installation, the vehicle's ECM may need to be reset or recalibrated to recognize the new sensor

• After replacement, clear any stored diagnostic trouble codes and perform a system check

• Clear any stored diagnostic trouble codes

• Perform a system check to confirm proper sensor communication with the ECM

• Verify that DPF regeneration cycles are occurring as expected

• Monitor for recurrence of any previously stored fault codes

• Check the warranty coverage offered by the supplier

• Ensure the seller provides a reasonable return or exchange policy in case of compatibility issues

With a typical service life of 200,000 kilometers or 5 years, this sensor is designed for long-term durability. However, operating conditions, driving habits, and environmental factors can affect actual lifespan.
