aftermarket M14 Cummins Water Temperature Sensor PTC 133866

Water Temperature Sensor 1338.66

Specifications

Operating Principle

The water temperature sensor operates based on the principles of resistance and thermistor technology. The sensing element is made up of a thermoresistance that responds to temperature changes. As the temperature of the coolant changes, the resistance value of the sensor changes accordingly. This change in resistance is converted into a voltage signal that the ECU reads and interprets. The ECU uses this data to make adjustments to the engine's performance, allowing it to operate at an optimal temperature.

For PTC (Positive Temperature Coefficient) sensors, resistance increases as temperature increases. For NTC (Negative Temperature Coefficient) sensors, resistance decreases as temperature increases. Different vehicle applications may use either type — always verify the correct specification for your vehicle.

Cross-Reference

The Water Temperature Sensor (Part No. 1338.66) is an OE-grade component recognized across multiple manufacturer platforms.

This sensor meets automotive industry safety and performance standards, guaranteeing reliability equivalent to original equipment.

Compatible Engines

The 1338.66 water temperature sensor is designed for compatibility with a wide range of vehicle applications across multiple manufacturers.

Compatible Vehicle Manufacturers

Compatible Citroën Models

Compatible Peugeot Models

Compatible Engine Configurations

Production Years

The 1338.66 sensor is applicable to vehicles manufactured primarily between 1993 and 2015.

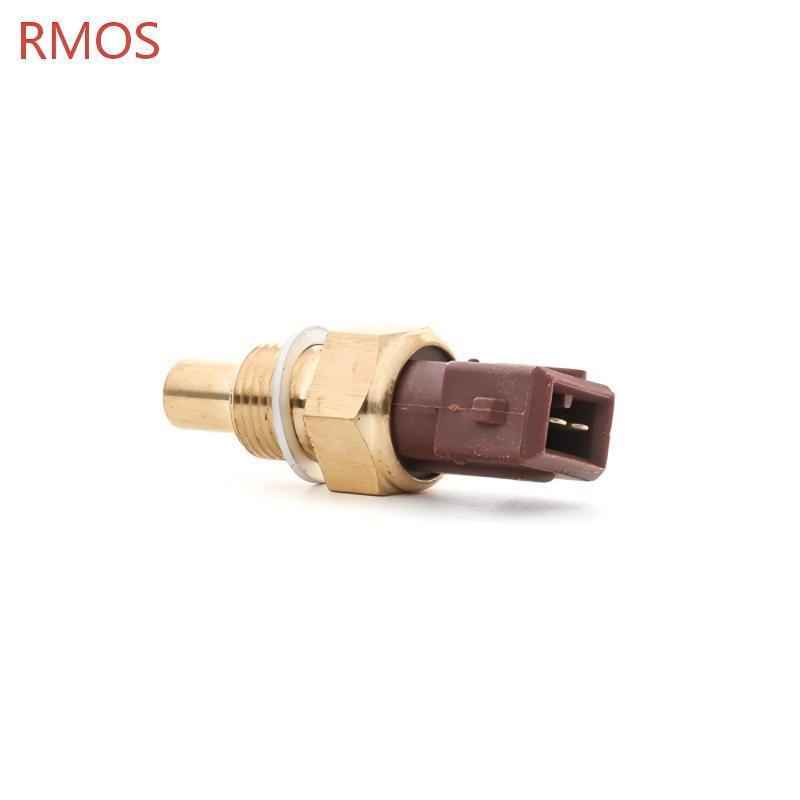

Important: Always verify connector type (2-pin rectangular connector), thread size (M14 x 1.25), housing colour (brown), and vehicle compatibility with your specific application before purchase.

Common Failure Symptoms

A failing or faulty water temperature sensor can manifest through various drivability and performance issues. Early recognition of these symptoms can prevent more serious engine damage and costly repairs.

1. Check Engine Light Illumination

One of the most common indicators of a faulty sensor is the illumination of the Check Engine Light on the dashboard. The ECU detects abnormal resistance values or signal patterns from the sensor and stores corresponding Diagnostic Trouble Codes (DTCs).

2. Inaccurate Temperature Gauge Readings

A faulty sensor may provide incorrect temperature data, resulting in erratic or inaccurate readings on the vehicle's temperature gauge. The gauge may show the engine running cooler or hotter than it actually is, or the needle may fluctuate unpredictably.

3. Poor Engine Starting Performance

Incorrect temperature readings can impair the ECU's ability to enrich the air-fuel mixture during cold starts. This may result in:

• Difficulty starting the engine when cold

• Extended cranking times

• Engine stalling shortly after starting

4. Increased Fuel Consumption

When the sensor provides inaccurate temperature data, the ECU may incorrectly adjust fuel delivery, often resulting in a richer-than-necessary air-fuel mixture. This condition leads to noticeably reduced fuel economy.

5. Engine Overheating

If the sensor fails to detect rising coolant temperatures accurately, the ECU may not activate the cooling fan at the appropriate time. This can lead to engine overheating — one of the most serious consequences of sensor failure.

6. Poor Engine Performance

Inaccurate temperature data can disrupt the ECU's calculations for ignition timing and fuel delivery, resulting in:

• Reduced engine power

• Rough idling

• Hesitation or surging during acceleration

7. Higher Idle Speed

A faulty sensor can cause the ECU to maintain an elevated idle speed as part of its default or "limp-home" strategy. The engine may idle at higher RPMs than normal, even after reaching operating temperature.

8. Increased Emissions

A faulty sensor can cause elevated exhaust emissions and interference with the lambda (oxygen sensor) control loop, potentially causing the vehicle to fail emissions testing.

9. Physical Signs of Sensor Failure

Visual inspection may reveal:

• Cracks in the sensor housing

• Coolant leaks around the sensor mounting area

• Corrosion on electrical connectors

• Damaged or frayed wiring

10. Stuck or Biased Readings

The sensor may become stuck at a fixed temperature reading or exhibit a bias, failing to accurately track actual coolant temperature changes. The ECU interprets this lack of variation as a fault and sets a corresponding DTC.

Important Purchase Considerations

When purchasing a replacement water temperature sensor (Part No. 1338.66), the following factors should be carefully evaluated to ensure proper fitment, reliable performance, and long service life.

1. Verify Part Number and OE References

Before purchasing, confirm that the sensor displays the correct part number (1338.66, 1338 66, or 133866). Multiple OE numbers may reference the same component specification — verifying these numbers helps ensure you receive the correct part for your application.

2. Verify Thread Size and Fitment

This sensor features an M14 x 1.25 thread size. Confirm that the thread size matches your vehicle's cylinder head or engine block mounting point. Thread mismatch is one of the most common installation issues encountered during replacement. The sensor requires a 19 mm spanner for installation and removal.

3. Verify Connector Type

This sensor features a 2-pin connector with a rectangular shape and brown housing colour. Verify that the electrical connector type matches your vehicle's wiring harness. Connector mismatch is one of the most common installation issues encountered during replacement.

4. Confirm Vehicle and Engine Compatibility

The 1338.66 sensor is compatible with a wide range of vehicles including Citroën (Berlingo, Xantia, Xsara, Xsara Picasso) and Peugeot (106, 206, 306, 605, Partner) models. Always cross-reference with your vehicle's specific year, make, model, and engine configuration. Key engine types include:

• 1.4L (TU3JP)

• 1.6L (TU5JP)

• 3.0L V6 (ES9J4)

5. Quality and Material Considerations

Opt for sensors manufactured to OE specifications. A high-quality sensor provides:

• Enhanced resistance to thermal degradation

• Superior protection against coolant corrosion

• Longer operational lifespan

• Reliable temperature readings with long-term stability

• Precise resistance response characteristics

6. Inspect Associated Components

When replacing a faulty water temperature sensor, it is advisable to inspect related cooling system components:

• Upper and lower coolant hoses for cracks, leaks, or deterioration

• Radiator for cracks, leaks, or damage

• Radiator cap for proper sealing

• Coolant level and condition

• Cooling fan operation

Always refer to the vehicle owner's manual for the correct coolant type and replacement procedure.

7. Electrical Connection Inspection

Before installing the new sensor:

• Inspect the wiring harness connector for corrosion, damage, or loose pins

• Check for broken or frayed wires

• Clean connector terminals if necessary

• Ensure a secure, weather-tight connection upon installation

8. Professional Diagnosis vs. Parts Replacement

While the symptoms listed above can indicate a faulty water temperature sensor, many of these symptoms can also be caused by other issues such as:

• Faulty coolant thermostat

• Wiring harness problems

• ECU issues

• Cooling system leaks

• Cooling fan motor failure

It is recommended to have the vehicle properly diagnosed using a scan tool to read stored DTCs before replacing the sensor. This ensures that the sensor is indeed the root cause of the symptoms and prevents unnecessary parts replacement.

9. Installation Best Practices

• Allow the engine to cool completely before attempting sensor removal or installation to prevent burns from hot coolant

• Use a 19 mm spanner for installation and removal

• Apply a small amount of thread sealant (compatible with coolant systems) if required

• Tighten the sensor to the manufacturer's specified torque value (avoid over-tightening, which can damage the sensor or the mounting point)

• After installation, check coolant level and top up if necessary

• Start the engine and check for leaks around the sensor mounting area

• Verify that the temperature gauge operates correctly and the Check Engine Light (if illuminated) has been cleared

10. Storage and Handling

If the sensor is not installed immediately, store it in a cool, dry environment away from direct sunlight and moisture. Avoid dropping or subjecting the sensor to mechanical shock, as this can damage the internal sensing element.

11. Warranty and Return Policy

When purchasing from a supplier, review the warranty coverage and return policy. Quality sensors should be backed by appropriate warranty protection against manufacturing defects. Keep the original packaging and proof of purchase for warranty claims if needed.

Technical Notes

Operating Principle

The water temperature sensor contains a thermistor-based sensing element that exhibits a predictable change in electrical resistance in response to temperature variations. Installed in the engine coolant circuit, the sensor makes direct contact with the engine coolant to accurately measure temperature.

Signal Processing

The ECU supplies a reference voltage to the sensor. As the sensor resistance changes with temperature, the voltage signal varies proportionally:

• Low coolant temperature → High resistance (NTC) / Low resistance (PTC)

• High coolant temperature → Low resistance (NTC) / High resistance (PTC)

The ECU converts this voltage signal into a temperature reading and uses it for critical engine management calculations, including fuel delivery, ignition timing, and cooling fan operation.

Failure Modes

Common failure modes include:

• Condensation damage – Moisture ingress can cause internal corrosion

• Electrical connection failure – Corroded or loose connector pins

• Internal thermistor failure – Open or short circuit conditions

• Physical damage – Cracks from thermal stress or mechanical impact
