Coolant Cummins Water Temp Sensor E150050005 E050210005 33609500U-E01 96131470 1920K9

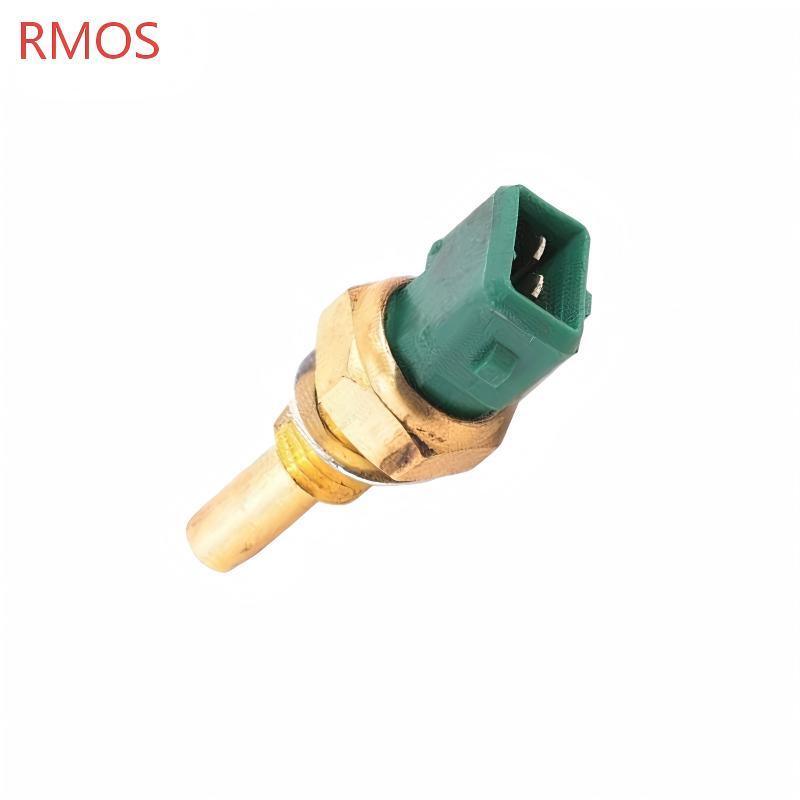

Water Temperature Sensor E150050005/E050210005/33609500U-E01/96131470/1920K9

As a thermistor-type sensor, the E150050005 exhibits the following resistance behavior:

• Low coolant temperature → High resistance → High voltage signal to ECU
• High coolant temperature → Low resistance → Low voltage signal to ECU

The ECU interprets these voltage variations to determine engine operating temperature and makes corresponding adjustments to fuel delivery, ignition timing, and cooling fan operation.

The Water Temperature Sensor (Part No. E150050005) is an OE-grade component with multiple recognized reference numbers across different platforms.

This sensor meets automotive industry safety and performance standards, guaranteeing reliability equivalent to original equipment. It is backed by rigorous testing for longevity and precision.

The E150050005 water temperature sensor is designed for compatibility with a range of European vehicle platforms, primarily serving models produced between 1987 and 2005.

The E150050005 sensor may also be compatible with other models and engine configurations from the same vehicle families. Key engine configurations include:

• 1.4L gasoline (TU series)
• 1.9L gasoline
• 3.0L V6 24V

Important: Always verify thread size, connector type, and vehicle compatibility with your specific application before purchase.

A failing or faulty water temperature sensor can manifest through various drivability and performance issues. Early recognition of these symptoms can prevent more serious engine damage and costly repairs.

One of the most common indicators of a faulty sensor is the illumination of the Check Engine Light on the dashboard. The ECU detects abnormal resistance values or signal patterns from the sensor and stores corresponding Diagnostic Trouble Codes (DTCs).

A faulty sensor may provide incorrect temperature data, resulting in erratic or inaccurate readings on the vehicle's temperature gauge. The gauge may show the engine running cooler or hotter than it actually is, or the needle may fluctuate unpredictably.

Incorrect temperature readings can impair the ECU's ability to enrich the air-fuel mixture during cold starts. This may result in:

• Difficulty starting the engine when cold
• Extended cranking times
• Engine stalling shortly after starting

Increased Fuel Consumption

When the sensor provides inaccurate temperature data, the ECU may incorrectly adjust fuel delivery, often resulting in a richer-than-necessary air-fuel mixture. This condition leads to noticeably reduced fuel economy.

If the sensor fails to detect rising coolant temperatures accurately, the ECU may not activate the cooling fan at the appropriate time. This can lead to engine overheating — one of the most serious consequences of sensor failure.

Inaccurate temperature data can disrupt the ECU's calculations for ignition timing and fuel delivery, resulting in:

• Reduced engine power
• Rough idling
• Hesitation or surging during acceleration

A faulty sensor can cause the ECU to maintain an elevated idle speed as part of its default or "limp-home" strategy. The engine may idle at higher RPMs than normal, even after reaching operating temperature.

A faulty sensor can cause elevated exhaust emissions and interference with the lambda (oxygen sensor) control loop, potentially causing the vehicle to fail emissions testing.

Visual inspection may reveal:

• Cracks in the sensor housing
• Coolant leaks around the sensor mounting area
• Corrosion on electrical connectors
• Damaged or frayed wiring

10. Stuck or Biased Readings

The sensor may become stuck at a fixed temperature reading or exhibit a bias, failing to accurately track actual coolant temperature changes. The ECU interprets this lack of variation as a fault and sets a corresponding DTC.

When purchasing a replacement water temperature sensor (Part No. E150050005), the following factors should be carefully evaluated to ensure proper fitment, reliable performance, and long service life.

Before purchasing, confirm that the sensor displays the correct part number (E150050005) or one of its equivalent numbers (E050210005, 33609500U-E01, 96131470, 1920K9, 9613147080). Multiple OE numbers may reference the same component specification — verifying these numbers helps ensure you receive the correct part for your application.

The E150050005 sensor is designed for specific European vehicle platforms manufactured between 1987 and 2005. Always cross-reference with your vehicle's specific year, make, model, and engine displacement. Key models include:

• 405 series (1987–1993) with 1.9L engine
• 206 series (1998–) with 1.4L engine
• 406 series (1995–2005) with 3.0L V6 engine

If your vehicle falls outside the listed applications, consult with a qualified parts specialist to determine suitability.

Opt for sensors that are 100% tested before delivery to ensure reliability. A high-quality sensor provides:

• Enhanced resistance to thermal degradation
• Superior protection against coolant corrosion
• Longer operational lifespan
• Reliable temperature readings with long-term stability

The E150050005 sensor comes with a 12-month warranty. When purchasing from a supplier, verify the warranty terms and conditions. Quality sensors should be backed by appropriate warranty protection against manufacturing defects.

When replacing a faulty water temperature sensor, it is advisable to inspect related cooling system components:

• Upper and lower coolant hoses for cracks, leaks, or deterioration
• Radiator for cracks, leaks, or damage
• Radiator cap for proper sealing
• Coolant level and condition
• Cooling fan operation

Always refer to the vehicle owner's manual for the correct coolant type and replacement procedure.

Before installing the new sensor:

• Inspect the wiring harness connector for corrosion, damage, or loose pins
• Check for broken or frayed wires
• Clean connector terminals if necessary
• Ensure a secure, weather-tight connection upon installation

While the symptoms listed above can indicate a faulty water temperature sensor, many of these symptoms can also be caused by other issues such as:

• Faulty coolant thermostat
• Wiring harness problems
• ECU issues
• Cooling system leaks
• Cooling fan motor failure

It is recommended to have the vehicle properly diagnosed using a scan tool to read stored DTCs before replacing the sensor. This ensures that the sensor is indeed the root cause of the symptoms and prevents unnecessary parts replacement.

• Allow the engine to cool completely before attempting sensor removal or installation to prevent burns from hot coolant
• Apply a small amount of thread sealant (compatible with coolant systems) if required
• Tighten the sensor to the manufacturer's specified torque value (avoid over-tightening, which can damage the sensor or the mounting point)
• After installation, check coolant level and top up if necessary
• Start the engine and check for leaks around the sensor mounting area
• Verify that the temperature gauge operates correctly and the Check Engine Light (if illuminated) has been cleared

If the sensor is not installed immediately, store it in a cool, dry environment away from direct sunlight and moisture. The sensor's packaging dimensions are 4 x 4 x 8 cm with a gross weight of approximately 0.020 kg. Avoid dropping or subjecting the sensor to mechanical shock, as this can damage the internal sensing element.

The E150050005 sensor is manufactured in Guangdong, China. When purchasing, verify that the supplier provides:

• Clear product specifications
• 100% testing certification
• Transparent warranty terms
• Proper packaging to prevent damage during shipping

The water temperature sensor contains a thermistor-based sensing element that exhibits a predictable change in electrical resistance in response to temperature variations. Installed in the engine coolant circuit, the sensor makes direct contact with the engine coolant to accurately measure temperature.

The ECU supplies a reference voltage to the sensor. As the sensor resistance changes with temperature, the voltage signal varies proportionally:

• Low coolant temperature → High resistance → High voltage signal to ECU
• High coolant temperature → Low resistance → Low voltage signal to ECU

The ECU converts this voltage signal into a temperature reading and uses it for critical engine management calculations, including fuel delivery, ignition timing, and cooling fan operation.

Common failure modes include:

• Condensation damage – Moisture ingress can cause internal corrosion
• Electrical connection failure – Corroded or loose connector pins
• Internal thermistor failure – Open or short circuit conditions
• Physical damage – Cracks from thermal stress or mechanical impact
