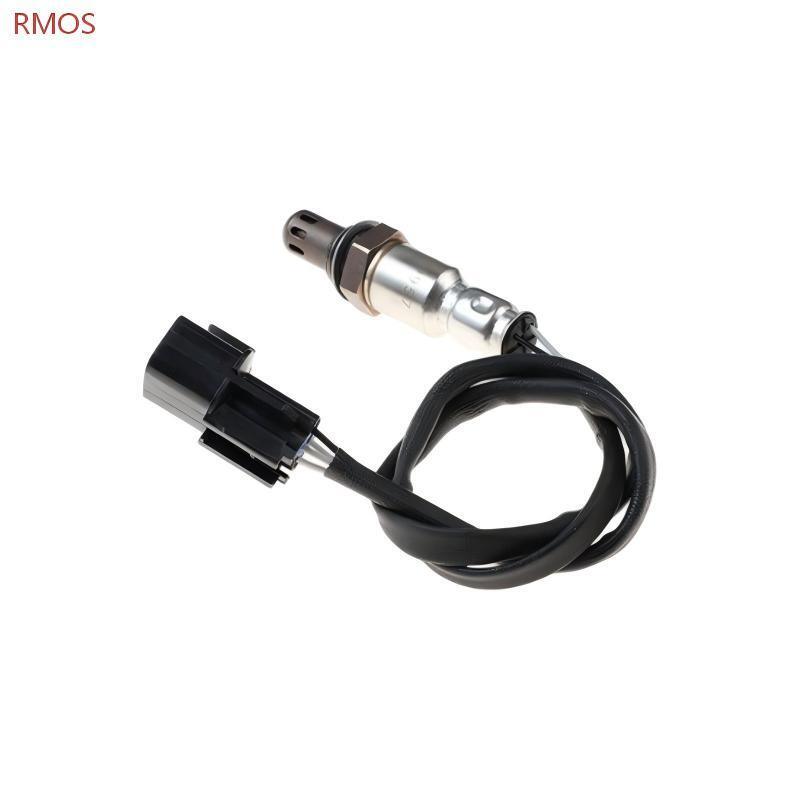

Car Oxygen Sensor 96419957 For Chevrolet / Daewoo / Jeep
| Place of Origin | China |
| Brand Name | RMOS |
| Model Number | 96419957 |
Product Details
Technical Information:
Sensor Type: O2
OE Number:
96419957
Model:
Chevrolet / Daewoo / Jeep
Thread Diameter:
M18 × 1.5
Light-Off Time:
≤ 15 Seconds
Connector Type:
Direct-Fit
Cable Length:
Approx. 550 Mm
Tested:
100% Tested
Quality:
OE Quality
Highlight:
Chevrolet car oxygen sensor
,Daewoo auto oxygen sensor
,Jeep oxygen sensor with warranty
Payment & Shipping Terms
Minimum Order Quantity
50
Price
To Be Negotiated
Packaging Details
Foam Bag + Paper box
Delivery Time
1-4weeks
Payment Terms
T/T
Supply Ability
20000pcs/Month
Product Description
Car Oxygen Sensor 96419957 For Chevrolet / Daewoo / Jeep
OE Part Number: 96419957
Product Overview
The Lambda Sensor with OE number 96419957 is an Original Equipment (OE) component manufactured for General Motors (GM) and its affiliated brands, including Chevrolet, Daewoo, Vauxhall, Opel, Buick, Cadillac, and Pontiac. It is also used on select Jeep applications.
This sensor monitors oxygen content in the exhaust gases and relays this information back to the Engine Control Unit (ECU) to ensure the optimal air-fuel mixture is maintained throughout operation for efficient combustion.
The sensor is manufactured with a stainless-steel shell that reduces rusting and provides greater dependability. The centre ceramic element is composed of Zirconium Oxide, Alumina, and Yttrium Oxide. The platinum coating is applied using vapour deposition to ensure even application, whilst a Spinel coating on the outer platinum layer prevents solid particles in the exhaust gas from damaging the component. All sensors go through 100% testing to ensure the highest possible quality standards are maintained and are tested to meet or exceed OE standards.
Specifications
| OE Part Number | 96419957 (also 96 419 957) |
| Brand / Manufacturer | GENERAL MOTORS, CHEVROLET, DAEWOO, VAUXHALL, OPEL, BUICK, CADILLAC, PONTIAC |
| Product Type | Lambda Sensor (Oxygen / O₂ Sensor) |
| Sensor Type | Heated, Regulating Probe |
| Number of Poles / Circuits | 4-pin connector |
| Cable Length | 425 mm (approx. 16.7 inches) |
| Length (Sensor nut to end of Connector) | 550 mm |
| Connector Shape | Round |
| Housing Colour | Black |
| Height | 23 mm |
| Width | 18 mm |
| Net Weight | 0.088 kg |
| Gross Weight | 0.110 kg |
| Placement on Vehicle | Before Catalytic Converter (Upstream / Pre-Catalyst) |
| Fitment Type | Vehicle Specific / Direct-Fit |
| Quality Standard | Tested to meet or exceed OE Standards |
Technical Notes:
- This is a 4-wire heated regulating probe (Lambda Sensor) manufactured to General Motors' original equipment standards.
- The built‑in heating element quickly brings the ceramic sensing tip up to operating temperature after a cold start, enabling the ECU to enter closed‑loop fuel control sooner and reduce cold‑start emissions.
- The sensor is used in the upstream (pre-catalyst) position on most applications, before the catalytic converter.
- As a direct‑fit component, it features a vehicle-specific electrical connector (round, 4-pin) and pre-terminated wiring, eliminating the need for cutting or splicing during installation.
Warranty Note: Aftermarket equivalents offer varying warranty periods — Fuel Parts LB2725 provides a 2-year warranty, Lemark LLB1050 provides a 5-year warranty, and Intermotor 64980 provides a Lifetime Warranty. Check with your specific retailer for warranty terms.
Cross-Reference (OEM & Interchange Numbers)
The following OE numbers are directly interchangeable with 96419957. Always verify physical fitment (connector shape, cable length and thread size) with your original part before purchasing.
| Type | Part Number(s) |
|---|---|
| Primary OE Number | 96419957, 96 419 957 |
| BUICK | 96419957, 96 419 957 |
| CADILLAC | 96419957, 96 419 957 |
| CHEVROLET | 96419957, 96 419 957 |
| DAEWOO | 96419957, 96 419 957 |
| GENERAL MOTORS | 96419957, 96 419 957 |
| OPEL | 96419957 |
| PONTIAC | 96419957, 96 419 957 |
| VAUXHALL | 96419957 |
| JEEP (Cross-Reference) | 96419957, 56028998 |
| Aftermarket Interchange | Fuel Parts LB2725 |
| Aftermarket Interchange | Lemark LLB1050 |
| Aftermarket Interchange | Intermotor 64980 |
| Aftermarket Interchange | Lucas LEB5524 |
| Aftermarket Interchange | Blue Print ADG07064 |
| Aftermarket Interchange | Febi 175862 |
| Aftermarket Interchange | NGK NTK 92246 |
| Aftermarket Interchange | FACET 10.8073 / EPS 1.998.073 |
| Aftermarket Interchange | MAGNETI MARELLI OSM127 / 466016355127 |
| Aftermarket Interchange | VEMO V51-76-0004 |
Cross-Reference Notes:
- The primary OE number 96419957 is used across BUICK, CADILLAC, CHEVROLET, DAEWOO, GENERAL MOTORS, OPEL, PONTIAC, and VAUXHALL.
- For Jeep applications, the OE number 96419957 is cross-referenced with 56028998 for the Commander XH and Grand Cherokee WH with 4.7L V8 petrol engines (2005-2010).
- Febi 175862 lists 96419957 alongside DAEWOO, MITSUBISHI (1588A140), and SUZUKI (1821386Z00/Z01/Z10) OE references, indicating cross-brand compatibility.
- The NGK NTK 92246 is a widely documented aftermarket equivalent for this OE number.
- Always physically compare your old sensor's connector shape (round), pin count (4), cable length (425 mm), and thread size before purchasing.
Compatible Vehicles
This Lambda Sensor is an original equipment component used across a wide range of General Motors (GM) group vehicles, as well as certain Jeep models.
⚠️ Important Position Note: This is a regulating probe typically installed in the upstream (pre-catalyst / before catalytic converter) position. Do not use it in the downstream (post-catalyst) position unless your vehicle's original sensor was located there. Upstream and downstream sensors are not interchangeable on most vehicles.
✅ Chevrolet Applications
| Model | Year Range | Engine / Notes |
|---|---|---|
| Aveo / Kalos | 2006 – 2011 | 1.2L. Upstream / Pre-Catalyst position |
| Aveo T250 / T255 | 2008 – 2011 | 1.2L. Pre-Catalyst position |
| Spark | 2010+ | 1.0L, 1.2L. Pre-Catalyst position |
| Spark (LMT) | 2013 | 1.0L L4. Heated Oxygen Sensor (Position 1) |
✅ Daewoo Applications
| Model | Year Range | Engine / Notes |
|---|---|---|
| Kalos | 2006 – 2011 | 1.2L. Upstream / Pre-Catalyst position |
✅ Jeep Applications
| Model | Year Range | Engine / Notes |
|---|---|---|
| Commander XH | 2005 – 2010 | 4.7L V8 Petrol. Cross-referenced with OE 56028998 |
| Grand Cherokee WH | 2005 – 2010 | 4.7L V8 Petrol. Cross-referenced with OE 56028998 |
✅ Additional Compatible Brands
| Brand | Notes |
|---|---|
| Buick | Listed as a compatible manufacturer for OE number 96419957 |
| Cadillac | Listed as a compatible manufacturer for OE number 96419957 |
| Opel | Listed as a compatible manufacturer for OE number 96419957 |
| Pontiac | Listed as a compatible manufacturer for OE number 96419957 |
| Vauxhall | Listed as a compatible manufacturer for OE number 96419957 |
Fitment Notes:
- This is a 4-wire heated regulating probe (Lambda Sensor) with a round 4-pin connector, 425 mm cable length, and 550 mm length from sensor nut to connector end.
- Primary applications include Chevrolet Aveo/Kalos (1.2L), Chevrolet Spark (1.0L, 1.2L), and Daewoo Kalos (1.2L).
- Jeep applications include Commander XH and Grand Cherokee WH with 4.7L V8 petrol engines (2005-2010), where this sensor is cross-referenced with OE 56028998.
- How to verify: Locate your vehicle's catalytic converter. The upstream sensor is typically installed in the exhaust manifold or in the pipe immediately before the catalytic converter. If your faulty sensor is located before the converter, this part is suitable. If located after the converter, a different part number is required.
- Not compatible with diesel engines — diesel applications use different sensors with different calibration parameters.
- The vehicle fitment information above is a guide only. Always confirm compatibility using your vehicle's VIN or by physically inspecting your old sensor's position, connector shape, and cable length before ordering.
