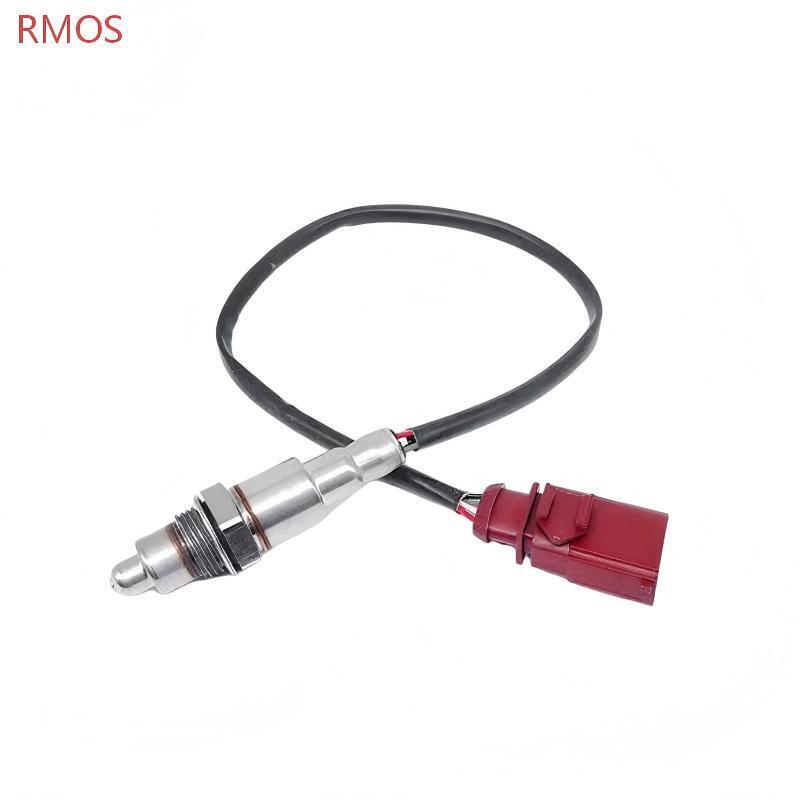

Car Oxygen Sensor 04C906262J/04E906262BF For VW / AUDI / Seat / Skoda
|
Car Oxygen Sensor 04C906262J/04E906262BF For VW / AUDI / Seat / Skoda
| Place of Origin | China |
| Brand Name | RMOS |
| Model Number | 04C906262J/04E906262BF |
Product Details
Technical Information:
Sensor Type: XF
OE Number:
04C906262J/04E906262BF
Model:
VW / AUDI / Seat / Skoda
Thread Diameter:
M18 × 1.5
Light-Off Time:
≤ 15 Seconds
Connector Type:
Direct-Fit
Cable Length:
Approx.570 Mm
Tested:
100% Tested
Quality:
OE Quality
Highlight:
VW AUDI Seat Skoda oxygen sensor
,car oxygen sensor with warranty
,04C906262J auto oxygen sensor
Payment & Shipping Terms
Minimum Order Quantity
50
Price
To Be Negotiated
Packaging Details
Foam Bag + Paper box
Delivery Time
1-4weeks
Payment Terms
T/T
Supply Ability
20000pcs/Month
Product Description
Car Oxygen Sensor 04C906262J/04E906262BF For VW / AUDI / Seat / Skoda
OE Part Numbers: 04C906262J / 04E906262BF
These Lambda Sensors are Original Equipment (OE) components manufactured for the Volkswagen Group (VAG), including Audi, SEAT, Škoda, and Volkswagen vehicles.
Important Note: These two OE numbers represent different sensors with slightly different cable lengths, though they are closely related and often grouped together as direct interchange references. Always verify your original sensor's part number, connector shape, cable length, and position before ordering.
Product Specifications
| Specification | 04C906262J | 04E906262BF |
|---|---|---|
| OE Part Number | 04C906262J (also 04C 906 262 J) | 04E906262BF (also 04E 906 262 BF) |
| Brand / Manufacturer | VAG (AUDI, SEAT, ŠKODA, VOLKSWAGEN, VAG) | VAG (AUDI, SEAT, ŠKODA, VOLKSWAGEN, VAG) |
| Product Type | Lambda Sensor (Oxygen / O₂ Sensor) | Lambda Sensor (Oxygen / O₂ Sensor) |
| Sensor Type | Heated, Switching-type Oxygen Sensor (Planar) | Heated, Switching-type Oxygen Sensor (Planar) |
| Function | Regulating Sensor / Oxygen Sensor | Regulating Sensor / Oxygen Sensor |
| Number of Poles / Circuits | 4-pin connector | 4-pin connector |
| Connector Shape | D-Shape | D-Shape |
| Cable Length | 470 mm | 470 mm |
| Thread Size | M18 × 1.5 | M18 × 1.5 |
| Spanner / Socket Size | 22 mm (7/8″) | 22 mm (7/8″) |
| Fitting Position | Before Catalytic Converter (Upstream / Pre-Catalyst) | Before Catalytic Converter (Upstream / Pre-Catalyst) |
| Heated | Yes | Yes |
Technical Features
- 4-wire heated switching-type oxygen sensors manufactured to Volkswagen Group's original equipment standards
- Built-in heating element quickly brings ceramic sensing tip to operating temperature after cold start
- Upstream (pre-catalyst) regulating sensors installed before catalytic converter
- D-shaped 4-pin connector with brown housing and approximately 470 mm cable length
- Stainless-steel shell construction with zirconium oxide ceramic element
- 100% tested to meet or exceed OE quality standards
Cross-Reference & Interchange Numbers
Primary OE Numbers
04C906262J, 04E906262BF
Related VAG OE Numbers
04E906262BG, 04E906262, 04E906262DC, 04E906262R, 04E906262AH, 04E906262DG, 04E906262EG
Aftermarket Interchange Parts
| Brand | Part Number | Warranty |
|---|---|---|
| Lemark | LLB868 | 5-year warranty |
| Fuel Parts | LB2616 | 2-year warranty |
| Intermotor | 64882 | - |
| Kerr Nelson | KNL993 | - |
| Lucas | LEB5395 | - |
| Cambiare | VE381775 | - |
Compatible Vehicles
Important Position Note: These are upstream (pre-catalyst) oxygen sensors installed before the catalytic converter. Do not use them in the downstream (post-catalyst) position. Upstream and downstream sensors are not interchangeable on most vehicles.
Volkswagen (VW)
| Model | Chassis / Generation | Year Range | Engine / Notes |
|---|---|---|---|
| Polo | Mk5 (6R, 6C) | 2009 - 2017 | 1.0L, 1.6L MPI. Upstream position |
| Polo Sedan | (60_, 61_) | 2009 - 2020 | 1.6L (110 HP). Upstream position |
| Polo VI | (AW1, BZ1, AE1) | 2017 - 2024 | 1.0L 55kW. Upstream position |
| Vento | -- | 2014 - 2020 | 1.6L. Pre-catalyst position |
| Golf VII | Mk7 (5G) | 2012 - 2020 | 1.0L, 1.2L TSI. Upstream position |
Škoda
| Model | Chassis / Generation | Year Range | Engine / Notes |
|---|---|---|---|
| Fabia III | Mk3 (NJ) | 2014 - 2021 | 1.0L (CHYB, 55kW), 1.6L. Upstream position |
| Rapid | (NH3, NH1) | 2012 - 2019 | 1.6L (CWVB, 90 HP), 1.6L MPI. Upstream position |
| Octavia | Mk3 (5E) | 2013 - 2020 | 1.0L, 1.2L TSI. Upstream position |
SEAT
| Model | Chassis / Generation | Year Range | Engine / Notes |
|---|---|---|---|
| Ibiza | Mk4 (6J1, 6J5, 6P1, 6P5) | 2008 - 2017 | 1.0L, 1.2L TSI, 1.4L. Upstream position |
| Toledo | Mk4 (KG3) | 2012 - 2019 | 1.6L. Upstream position |
| Leon | Mk3 (5F) | 2012 - 2020 | 1.2L TSI (CYV, 81kW). Upstream position |
Audi
| Model | Chassis / Generation | Year Range | Engine / Notes |
|---|---|---|---|
| A1 | 8X | 2010 - 2018 | 1.0L, 1.2L TFSI. Upstream position |
| A3 | 8V | 2012 - 2020 | 1.0L, 1.2L TFSI. Upstream position |
Fitment Notes: This is an upstream (pre-catalyst) oxygen sensor installed before the catalytic converter. Not compatible with diesel engines. Always confirm compatibility using your vehicle's VIN or by physically inspecting your old sensor before ordering.
