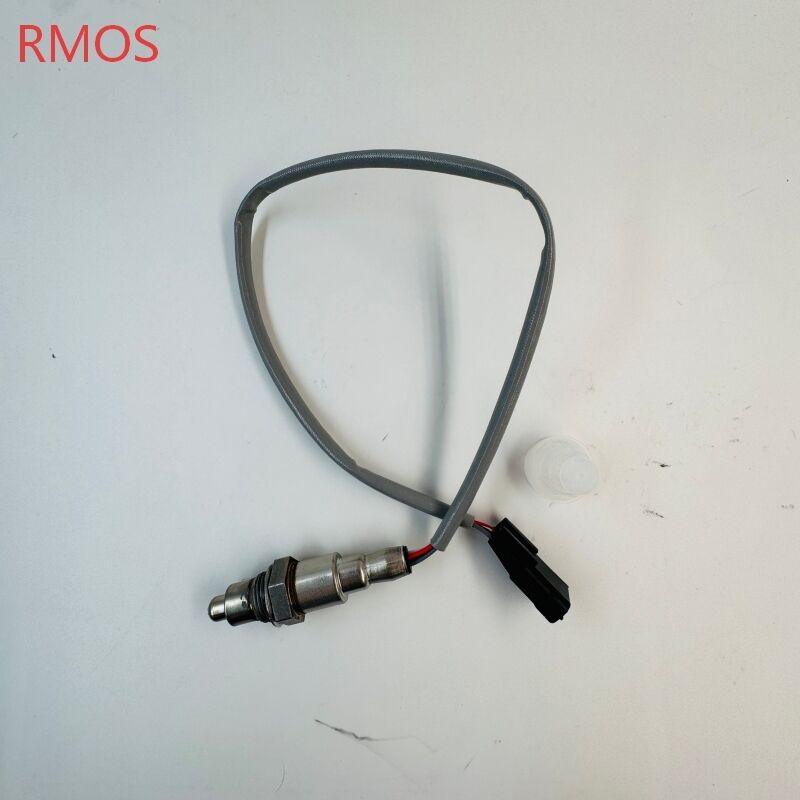

Renault Dacia Smart Alpine Vehicle Oxygen Sensor Diagnostic Probe 0258030172
|
Renault Dacia Smart Alpine Vehicle Oxygen Sensor Diagnostic Probe 0258030172
| Place of Origin | China |
| Brand Name | RMOS |
| Model Number | 0258030172 |
Product Details
Technical Information:
Lambda Sensor (Oxygen / O₂ Sensor)
Months Of Warranty:
1 Year
Connector Type:
4-pins
Cable Length:
Approx. 500 Mm
Mounting Type:
Screw‑in Thread
Car Model:
Renault / Dacia / LADA / Smart / Alpine
Quality Standard:
OE Equivalent, 100% Tested
Lambda Type:
Diagnostic Probe (Catalyst Efficiency Monitor)
Weight:
Approx. 0.09 – 0.12 Kg
Highlight:
Renault vehicle oxygen sensor
,Alpine vehicle oxygen sensor
,0258030172
Payment & Shipping Terms
Minimum Order Quantity
50
Price
To Be Negotiated
Packaging Details
Foam Bag + Paper box
Delivery Time
1-4weeks
Payment Terms
T/T
Supply Ability
20000pcs/Month
Product Description
Car Oxygen Sensor For Renault / Dacia / LADA / Smart / Alpine 0258030172
Specifications
| Specification | Details |
|---|---|
| Product Type | Lambda Sensor (Oxygen / O2 Sensor) |
| OE Part Number | 0 258 030 172 |
| Alternative OE Numbers | 226901841R, 8201312873, H8201443067, 0258030172 |
| Number of Circuits / Wires | 4 |
| Cable Length | Approx. 500 mm |
| External Thread Size | M18 × 1.5 |
| Spanner Size | 22 mm (7/8″) |
| Sensor Type | Heated, Planar Probe (Narrow‑Band / Switching Type) |
| Mounting Type | Screw‑in Thread |
| Net Weight | Approx. 0.09 – 0.12 kg |
| Application | Upstream Oxygen Sensor (Front / Pre‑Catalyst) for most applications |
Technical Notes:
- This is a 4‑wire heated narrow‑band oxygen sensor. The four wires serve two independent circuits – two for the internal heater (power and ground) and two for the sensor signal and ground.
- The built‑in heating element brings the ceramic sensing tip up to operating temperature quickly after a cold start, enabling the ECU to enter closed‑loop fuel control sooner and significantly reduce cold‑start emissions.
- Under rich (excess fuel) conditions, the sensor outputs approximately 0.6 – 1.0 V. Under lean (excess oxygen) conditions, the output falls to near 0 V. The ECU uses this feedback to continuously adjust fuel delivery for optimal combustion efficiency.
- All sensors undergo 100% testing to meet or exceed original equipment quality standards.
Specification data compiled from multiple catalogues. Actual specifications may vary by manufacturer; always verify fitment with your original sensor before ordering.
Cross-Reference (OEM & Interchange Numbers)
This Lambda Sensor is an original equipment component for vehicles manufactured within the Renault‑Nissan‑Dacia Alliance (including Renault, Dacia and LADA).
The following OE numbers are direct equivalents or closely related to this part number.
✅ Renault / Dacia / Nissan Alliance OE Numbers
| Brand | OE Part Number(s) |
|---|---|
| RENAULT / DACIA | 0 258 030 172, 226901841R, 226905987R, 226906393R, 226A41772R, 8201312873, 8201443067 |
| LADA | 226A41772R |
| RENAULT TRUCKS | 226901841R |
